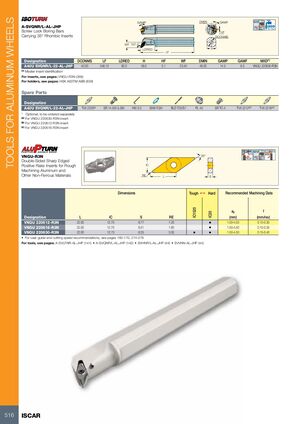

TOOLS FOR ALUMINUM WHEELS GAMP DMIN GAMF 107.5º A-SVQNR/L-AL-JHP 35º Bar Max Screw Lock Boring Bars MAX HF Carrying 35° Rhombic Inserts DCONMS WF 107.5˚ LDRED H LF Designation DCONMS LF LDRED H HF WF DMIN GAMP GAMF MIID(1) A40U SVQNR/L-22-AL-JHP 40.00 348.10 60.0 36.0 0.1 23.40 49.00 14.5 6.5 VNGU 220630-R3N (1) Master insert identification For inserts, see pages: VNGU-R3N (268) For holders, see pages: HSK A63TM ABB (839) Spare Parts Designation A40U SVQNR/L-22-AL-JHP TVX 2230(a) SR 14-591/L-SN HW 3.0 SW6-T-SH BLD T20/S7 PL 40 SR TC-4 TVX 2212(b)* TVX 2216(c)* * Optional, to be ordered separately (a) For VNGU 220630-R3N insert (b) For VNGU 220612-R3N insert (c) For VNGU 220616-R3N insert 70°MAX 107.5º 107.5º VNGU-R3N 35° 35º 72.5º Double-Sided Sharp Edged MAX Positive Rake Inserts for Rough IC Machining Aluminum and Other Non-Ferrous Materials RE L S Dimensions Tough 1 IC1520 Hard Recommended Machining Data IC20 ap f Designation L IC S RE (mm) (mm/rev) VNGU 220612-R3N 22.00 12.70 6.77 1.20 • 1.00-4.50 0.10-0.30 VNGU 220616-R3N 22.00 12.70 6.51 1.60 • 1.50-4.50 0.10-0.35 VNGU 220630-R3N 22.00 12.70 6.35 3.00 • • 1.50-4.50 0.15-0.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-SVLFNR-AL-JHP (141) • A-SVQNR/L-AL-JHP (142) • SVHNR/L-AL-JHP (44) • SVVNN-AL-JHP (44) 516 ISCAR
