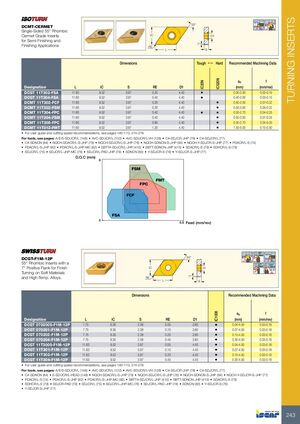

TURNING INSERTS 93º-95º 55° 107.5° DCMT-CERMET 30º MAX 16º Single-Sided 55° Rhombic MAX Cermet Grade Inserts IC D1 for Semi-Finishing and 7° Finishing Applications RE L S Dimensions Tough 1 Hard Recommended Machining Data IC520N ap f IC20N Designation L IC S RE D1 (mm) (mm/rev) DCGT 11T302-FSA 11.60 9.52 3.97 0.20 4.40 • 0.30-2.00 0.02-0.15 DCGT 11T304-FSA 11.60 9.52 3.97 0.40 4.40 • 0.40-2.00 0.03-0.15 DCMT 11T302-FCF 11.60 9.52 3.97 0.20 4.40 • 0.50-2.50 0.07-0.22 DCMT 11T302-FSM 11.60 9.52 3.97 0.20 4.40 • 0.50-3.00 0.05-0.22 DCMT 11T304-FPC 11.60 9.52 3.97 0.40 4.40 • • 0.50-2.70 0.04-0.25 DCMT 11T304-FSM 11.60 9.52 3.97 0.40 4.40 • 0.50-3.00 0.07-0.25 DCMT 11T308-FPC 11.60 9.52 3.97 0.80 4.40 • 0.50-2.70 0.04-0.25 DCMT 11T312-FMT 11.60 9.52 3.97 1.20 4.40 • 1.50-5.00 0.15-0.50 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SDUCR/L (148) • AVC-SDUCR/L (122) • AVC-SDUCR/L-VH (128) • C#-SDJCR-JHP (78) • C#-SDJCR/L (77) • C#-SDNCN (84) • NQCH-SDACR/L-S-JHP (79) • NQCH-SDJCR/L-S-JHP (76) • NQCH-SDNCN-S-JHP (84) • NQCH-Y-SDJCR-S-JHP (77) • PDACR/L-S (74) • PDACR/L-S-JHP (82) • PDACR/L-S-JHP-MC (82) • SBTT#-SDJCR/L-JHP (415) • SBTT-SDNCN-JHP (415) • SDACR/L-S (79) • SDHCR/L-S (79) • SDJCR/L (75) • SDJCR/L-JHP-MC (76) • SDJCR/L-PAD-JHP (78) • SDNCN (83) • Y-SDJCR-S (76) • Y-SDJCR-S-JHP (77) D.O.C (mm) 6 FSM FMT FPC FCF FSA 0 0.6 Feed (mm/rev) 29° MAX 93º-95º 55° 107.5° DCGT-F1M-12P 16º 91° 30º MAX 55° Rhombic Inserts with a MAX 27° 60° MAX MAX 7° Positive Flank for Finish IC D1 93° 62.5º Turning on Soft Materials and High-Temp. Alloys. RE 7° L S Dimensions Recommended Machining Data ap f IC1008 Designation L IC S RE D1 (mm) (mm/rev) DCGT 0702005-F1M-12P 7.75 6.35 2.38 0.05 2.80 • 0.04-4.50 0.03-0.18 DCGT 070201-F1M-12P 7.75 6.35 2.38 0.10 2.80 • 0.07-4.50 0.03-0.18 DCGT 070202-F1M-12P 7.75 6.35 2.38 0.20 2.80 • 0.15-4.50 0.03-0.18 DCGT 070204-F1M-12P 7.75 6.35 2.38 0.40 2.80 • 0.30-4.50 0.03-0.18 DCGT 11T3005-F1M-12P 11.63 9.52 3.97 0.05 4.40 • 0.04-4.50 0.03-0.18 DCGT 11T301-F1M-12P 11.63 9.52 3.97 0.10 4.40 • 0.07-4.50 0.03-0.18 DCGT 11T302-F1M-12P 11.63 9.52 3.97 0.20 4.40 • 0.15-4.50 0.03-0.18 DCGT 11T304-F1M-12P 11.63 9.52 3.97 0.40 4.40 • 0.30-4.50 0.03-0.18 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SDUCR/L (148) • AVC-SDUCR/L (122) • AVC-SDUCR/L-VH (128) • C#-SDJCR-JHP (78) • C#-SDJCR/L (77) • C#-SDNCN (84) • E-SDUCR/L-HEAD (148) • NQCH-SDACR/L-S-JHP (79) • NQCH-SDJCR/L-S-JHP (76) • NQCH-SDNCN-S-JHP (84) • NQCH-Y-SDJCR-S-JHP (77) • PDACR/L-S (74) • PDACR/L-S-JHP (82) • PDACR/L-S-JHP-MC (82) • SBTT#-SDJCR/L-JHP (415) • SBTT-SDNCN-JHP (415) • SDACR/L-S (79) • SDHCR/L-S (79) • SDJCR-PAD (78) • SDJCR/L (75) • SDJCR/L-JHP-MC (76) • SDJCR/L-PAD-JHP (78) • SDNCN (83) • Y-SDJCR-S (76) • Y-SDJCR-S-JHP (77) 243
