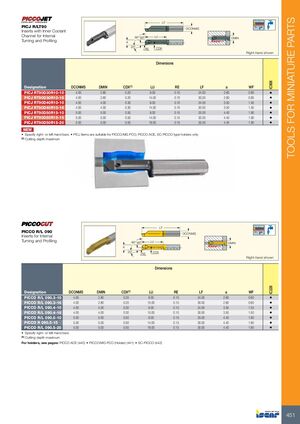

TOOLS FOR MINIATURE PARTS LF PICJ R/LT90 DCONMS Inserts with Inner Coolant Channel for Internal 90° WF LU DMIN Turning and Profiling a 20° CDX RE Right-hand shown Dimensions IC908 Designation DCONMS DMIN CDX(1) LU RE LF a WF PICJ RT90D30R10-10 4.00 2.80 0.20 9.00 0.10 24.00 2.60 0.60 • PICJ RT90D30R10-16 4.00 2.80 0.20 14.00 0.10 30.00 2.60 0.60 • PICJ RT90D40R10-10 4.00 4.00 0.30 9.00 0.10 24.00 3.50 1.50 • PICJ RT90D40R10-16 4.00 4.00 0.30 14.00 0.10 30.00 3.50 1.50 • PICJ RT90D50R15-10 5.00 5.00 0.50 9.00 0.15 25.00 4.40 1.90 • PICJ RT90D50R15-15 5.00 5.00 0.50 14.00 0.15 30.00 4.40 1.90 • PICJ RT90D50R15-20 5.00 5.00 0.50 19.00 0.15 35.00 4.40 1.90 • NEW • Specify right- or left-hand bars • PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only (1) Cutting depth maximum LF PICCO R/L 090 DCONMS Inserts for Internal Turning and Profiling 90° WF LU DMIN a 20° CDX RE Right-hand shown Dimensions IC228 Designation DCONMS DMIN CDX(1) LU RE LF a WF PICCO R/L 090.3-10 4.00 2.80 0.20 9.00 0.10 24.00 2.60 0.60 • PICCO R/L 090.3-16 4.00 2.80 0.20 15.00 0.10 30.00 2.60 0.60 • PICCO R/L 090.4-10 4.00 4.00 0.30 9.00 0.10 24.00 3.50 1.50 • PICCO R/L 090.4-16 4.00 4.00 0.30 15.00 0.10 30.00 3.50 1.50 • PICCO R/L 090.5-10 5.00 5.00 0.50 9.00 0.15 25.00 4.40 1.90 • PICCO R 090.5-15 5.00 5.00 0.50 14.00 0.15 30.00 4.40 1.90 • PICCO R/L 090.5-20 5.00 5.00 0.50 19.00 0.15 35.00 4.40 1.90 • • Specify right- or left-hand bars (1) Cutting depth maximum For holders, see pages: PICCO ACE (440) • PICCO/MG PCO (Holder) (441) • SC-PICCO (442) 451
