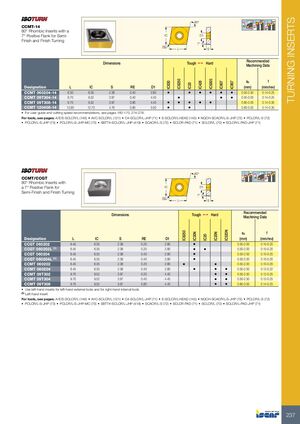

TURNING INSERTS 99° 80° 95º CCMT-14 95º 91° 95º 80° Rhombic Inserts with a 7° Positive Flank for Semi- IC D1 Finish and Finish Turning 7° RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC8250 IC5005 IC830 IC428 IC807 IC907 IC20 Designation L IC S RE D1 (mm) (mm/rev) CCMT 060204-14 6.30 6.35 2.38 0.40 2.80 • • • • • • 0.50-2.50 0.14-0.25 CCMT 09T304-14 9.70 9.52 3.97 0.40 4.40 • • • 0.50-3.00 0.14-0.25 CCMT 09T308-14 9.70 9.52 3.97 0.80 4.40 • • • • • 0.80-3.00 0.14-0.30 CCMT 120408-14 12.90 12.70 4.76 0.80 5.50 • • 0.80-3.00 0.14-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278. For tools, see pages: A/E/S-SCLCR/L (146) • AVC-SCLCR/L (121) • C#-SCLCR/L-JHP (71) • E-SCLCR/L-HEAD (145) • NQCH-SCACR/L-S-JHP (72) • PCLCR/L-S (72) • PCLCR/L-S-JHP (73) • PCLCR/L-S-JHP-MC (73) • SBTT#-SCLCR/L-JHP (418) • SCACR/L-S (72) • SCLCR-PAD (71) • SCLCR/L (70) • SCLCR/L-PAD-JHP (71) 99° 80° 95º CCMT/CCGT 95º 95º 91° 80° Rhombic Inserts with a 7° Positive Flank for IC D1 Semi-Finish and Finish Turning 7° RE L S Recommended Dimensions Tough 1 Hard Machining Data IC520N ap f IC8250 IC30N IC20N IC20 Designation L IC S RE D1 (mm) (mm/rev) CCGT 060202 6.45 6.35 2.38 0.20 2.80 • 0.50-2.00 0.10-0.20 CCGT 060202L (1) 6.45 6.35 2.38 0.20 2.80 • • 0.50-2.00 0.10-0.20 CCGT 060204 6.45 6.35 2.38 0.40 2.80 • 0.50-2.00 0.10-0.20 CCGT 060204L (1) 6.45 6.35 2.38 0.40 2.80 • 0.50-2.00 0.10-0.20 CCMT 060202 6.45 6.35 2.38 0.20 2.80 • • 0.50-2.00 0.10-0.20 CCMT 060204 6.45 6.35 2.38 0.40 2.80 • • • 0.50-2.00 0.12-0.22 CCMT 09T302 9.70 9.52 3.97 0.20 4.40 • • 0.50-2.50 0.12-0.25 CCMT 09T304 9.70 9.52 3.97 0.40 4.40 • • 0.50-2.50 0.12-0.25 CCMT 09T308 9.70 9.52 3.97 0.80 4.40 • • 0.80-3.00 0.14-0.25 • Use left-hand inserts for left-hand external tools and for right-hand internal tools (1) Left-hand insert For tools, see pages: A/E/S-SCLCR/L (146) • AVC-SCLCR/L (121) • C#-SCLCR/L-JHP (71) • E-SCLCR/L-HEAD (145) • NQCH-SCACR/L-S-JHP (72) • PCLCR/L-S (72) • PCLCR/L-S-JHP (73) • PCLCR/L-S-JHP-MC (73) • SBTT#-SCLCR/L-JHP (418) • SCACR/L-S (72) • SCLCR-PAD (71) • SCLCR/L (70) • SCLCR/L-PAD-JHP (71) 237
