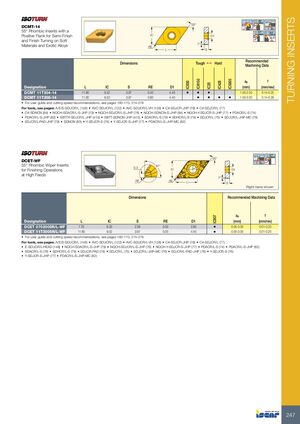

TURNING INSERTS 29° MAX 93º-95º 55° 107.5° DCMT-14 16º 91° 30º MAX 55° Rhombic Inserts with a MAX 27° 60° MAX MAX Positive Flank for Semi-Finish IC D1 93° 62.5º and Finish Turning on Soft 7° Materials and Exotic Alloys RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC8150 IC5005 IC830 IC428 IC20 Designation L IC S RE D1 (mm) (mm/rev) DCMT 11T304-14 11.60 9.52 3.97 0.40 4.40 • • • 1.00-2.50 0.14-0.25 DCMT 11T308-14 11.60 9.52 3.97 0.80 4.40 • • • • 1.50-3.00 0.14-0.29 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SDUCR/L (148) • AVC-SDUCR/L (122) • AVC-SDUCR/L-VH (128) • C#-SDJCR-JHP (78) • C#-SDJCR/L (77) • C#-SDNCN (84) • NQCH-SDACR/L-S-JHP (79) • NQCH-SDJCR/L-S-JHP (76) • NQCH-SDNCN-S-JHP (84) • NQCH-Y-SDJCR-S-JHP (77) • PDACR/L-S (74) • PDACR/L-S-JHP (82) • SBTT#-SDJCR/L-JHP (415) • SBTT-SDNCN-JHP (415) • SDACR/L-S (79) • SDHCR/L-S (79) • SDJCR/L (75) • SDJCR/L-JHP-MC (76) • SDJCR/L-PAD-JHP (78) • SDNCN (83) • Y-SDJCR-S (76) • Y-SDJCR-S-JHP (77) • PDACR/L-S-JHP-MC (82) 27° 93º-95º MAX 55° DCET-WF 30º MAX 93° 55° Rhombic Wiper Inserts 87° 0.3 for Finishing Operations IC D1 at High Feeds 7° RE RE L S Right-hand shown Dimensions Recommended Machining Data IC907 ap f Designation L IC S RE D1 (mm) (mm/rev) DCET 0702005R/L-WF 7.70 6.35 2.38 0.05 2.80 • 0.05-3.00 0.01-0.20 DCET 11T3005R/L-WF 11.60 9.52 3.97 0.05 4.40 • 0.05-3.00 0.01-0.20 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SDUCR/L (148) • AVC-SDUCR/L (122) • AVC-SDUCR/L-VH (128) • C#-SDJCR-JHP (78) • C#-SDJCR/L (77) • E-SDUCR/L-HEAD (148) • NQCH-SDACR/L-S-JHP (79) • NQCH-SDJCR/L-S-JHP (76) • NQCH-Y-SDJCR-S-JHP (77) • PDACR/L-S (74) • PDACR/L-S-JHP (82) • SDACR/L-S (79) • SDHCR/L-S (79) • SDJCR-PAD (78) • SDJCR/L (75) • SDJCR/L-JHP-MC (76) • SDJCR/L-PAD-JHP (78) • Y-SDJCR-S (76) • Y-SDJCR-S-JHP (77) • PDACR/L-S-JHP-MC (82) 247
