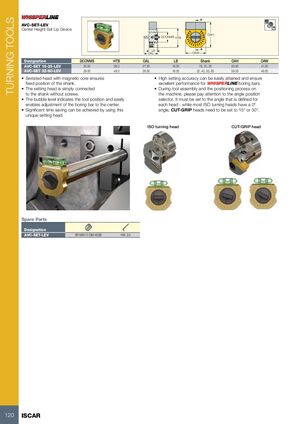

TURNING TOOLS A AVC-SET-LEV Center Height Set Up Device OAH DCONMS HTB LB A OAL OAW Designation DCONMS HTB OAL LB Shank OAH OAW AVC-SET 16-25-LEV 20.00 38.0 27.50 16.00 16, 20, 25 50.50 41.00 AVC-SET 32-60-LEV 29.00 49.0 28.00 16.00 32, 40, 50, 60 59.00 49.00 • Serrated head with magnetic core ensures • High setting accuracy can be easily attained and ensure fixed position of the shank� excellent performance for WHISPERLINE boring bars� • The setting head is simply connected • During tool assembly and the positioning process on to the shank without screws� the machine, please pay attention to the angle position • The bubble level indicates the tool position and easily selector� It must be set to the angle that is defined for enables adjustment of the boring bar to the center� each head - while most ISO turning heads have a 0° • Significant time saving can be achieved by using this angle, CUT-GRIP heads need to be set to 15° or 30°� unique setting head� ISO turning head CUT-GRIP head Spare Parts Designation AVC-SET-LEV SR M6X10 DIN1835B HW 3.0 120 ISCAR
