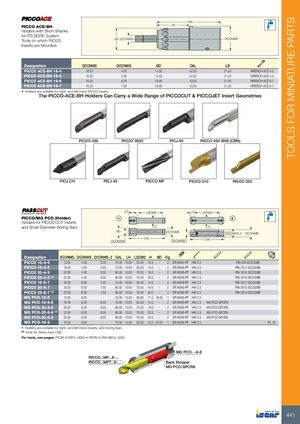

TOOLS FOR MINIATURE PARTS OAL LB PICCO ACE-BH Holders with Short Shanks for ITS BORE System. BD DCONWS DCONMS Tools on which PICCO Inserts are Mounted. Designation DCONMS DCONWS BD OAL LB PICCO ACE-BH 16-4 16.00 4.00 14.50 42.50 21.50 WRENCH ACE 4-5 PICCO ACE-BH 16-5 16.00 5.00 14.50 42.50 21.50 WRENCH ACE 4-5 PICCO ACE-BH 16-6 16.00 6.00 19.90 43.50 21.50 WRENCH ACE 6-7 PICCO ACE-BH 16-7 16.00 7.00 19.90 43.50 21.50 WRENCH ACE 6-7 • Holders are suitable for right- and left-hand PICCO inserts The PICCO-ACE-BH Holders Can Carry a Wide Range of PICCOCUT & PICCOJET Insert Geometries PICCO 050 PICCO 050C PICJ 90 PICCO 050 IB55 (CBN) PICJ CH PICJ 45 PICCO MF PICCO 010 PICCO 020 LH LSCMS LH LSCMS PICCO/MG PCO (Holder) 1 2 Holders for PICCO-CUT Inserts H H and Small Diameter Boring Bars BD DCONMS DCONWS_2 DCONMS OAL OAL DCONWS DCONWS Designation DCONMS DCONWS DCONWS_2 OAL LH LSCMS H BD Fig. PICCO 12-4-5 12.00 4.00 5.00 75.00 10.00 55.00 10.3 - 2 SR M5X4-PF HW 2.5 PIN 2X8 ISO2338B PICCO 16-4-5 16.00 4.00 5.00 75.00 10.00 55.00 14.0 - 2 SR M5X6-PF HW 2.5 PIN 2X12 ISO2338B PICCO 20-4-5 20.00 4.00 5.00 90.00 10.00 70.00 18.0 - 2 SR M5X6-PF HW 2.5 PIN 3X16 ISO2338B PICCO 22-4-5 (1) 22.00 4.00 5.00 90.00 10.00 70.00 20.0 - 2 SR M5X6-PF HW 2.5 PIN 3X18 ISO2338B PICCO 16-6-7 16.00 6.00 7.00 75.00 10.00 55.00 14.0 - 2 SR M5X6-PF HW 2.5 PIN 3X12 ISO2338B PICCO 20-6-7 20.00 6.00 7.00 90.00 10.00 70.00 18.0 - 2 SR M5X6-PF HW 2.5 PIN 3X16 ISO2338B PICCO 22-6-7 (1) 22.00 6.00 7.00 90.00 10.00 70.00 20.0 - 2 SR M5X6-PF HW 2.5 PIN 3X18 ISO2338B MG PCO-12-6 12.00 6.00 - 75.00 15.00 50.80 11.0 18.00 1 SR M5X6-PF HW 2.5 MG PCO-16-6-8 16.00 6.00 8.00 75.00 10.00 55.00 14.0 - 2 SR M5X6-PF HW 2.5 MG PCO-SPCR8 MG PCO-20-6-8 20.00 6.00 8.00 90.00 10.00 70.00 18.0 - 2 SR M5X6-PF HW 2.5 MG PCO-SPCR8 MG PCO-22-6-8 (1) 22.00 6.00 8.00 90.00 10.00 70.00 20.0 - 2 SR M5X6-PF HW 2.5 MG PCO-SPCR8 MG PCO-25-6-8 25.00 6.00 8.00 90.00 10.00 70.00 23.0 - 2 SR M5X6-PF HW 2.5 MG PCO-SPCR8 MG PCO-16-9 16.00 9.00 - 75.00 15.00 53.00 15.0 20.00 1 SR M5X6-PF HW 2.5 PL 16 • Holders are suitable for right- and left-hand inserts, and boring bars (1) Tools for Swiss-type CNC For tools, see pages: PICIN-A-SIR/L (466) • PICIN-A-SWUBR/L (465) MG PCO...-6-8 PICCO...MF...8-... PICCO...MFT...8-... Back Stopper MG PCO-SPCR8 441
