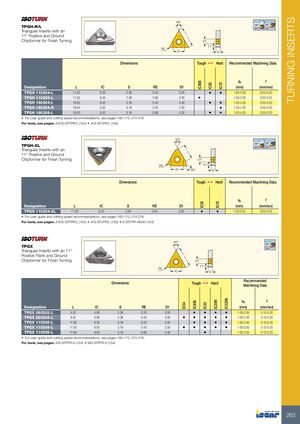

TURNING INSERTS 60° 95º 91º TPGH-R/L Triangular Inserts with an 11° Positive and Ground L Chipformer for Finish Turning D1 11° RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC908 IC20 IC70 Designation L IC S RE D1 (mm) (mm/rev) TPGH 110204-L 11.00 6.35 2.38 0.40 3.00 • • 1.00-3.00 0.05-0.25 TPGH 110208-L 11.00 6.35 2.38 0.80 3.00 • 1.00-3.00 0.05-0.25 TPGH 160304-L 16.50 9.52 3.18 0.40 4.30 • • 1.00-4.00 0.05-0.30 TPGH 160304-R 16.50 9.52 3.18 0.40 4.30 • 1.00-4.00 0.05-0.30 TPGH 160308-L 16.50 9.52 3.18 0.80 4.30 • • 1.00-4.00 0.05-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-STFPR/L (154) • A/S-STLPR/L (155) 60° 95º 91º TPGH-XL Triangular Inserts with an L 11° Positive and Ground Chipformer for Finish Turning D1 RE 11° IC 80° S Dimensions Tough 1 Hard Recommended Machining Data IC20 ap f IC70 Designation L IC S RE D1 (mm) (mm/rev) TPGH 110204-XL 11.00 6.35 2.38 0.40 3.00 • • 1.00-3.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-STFPR/L (154) • A/S-STLPR/L (155) • E-STFPR-HEAD (153) 60° 91º TPGX Triangular Inserts with an 11° Positive Flank and Ground L Chipformer for Finish Turning D1 11° RE IC S Recommended Dimensions Tough 1 Hard Machining Data IC520N ap f IC20N IC908 IC54 IC20 Designation L IC S RE D1 (mm) (mm/rev) TPGX 090202-L 9.52 5.56 2.38 0.20 3.00 • • • • 1.00-2.00 0.10-0.20 TPGX 090204-L 9.52 5.56 2.38 0.40 3.00 • • • • • 1.00-2.50 0.15-0.20 TPGX 110302-L 11.00 6.35 3.18 0.20 3.50 • • • • 1.00-2.50 0.10-0.20 TPGX 110304-L 11.00 6.35 3.18 0.40 3.50 • • • • • 1.00-3.00 0.15-0.20 TPGX 110308-L 11.00 6.35 3.18 0.80 3.50 • 1.00-3.50 0.15-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278. For tools, see pages: A/E-STFPR-X (154) • MG STFPR-X (154) 263
