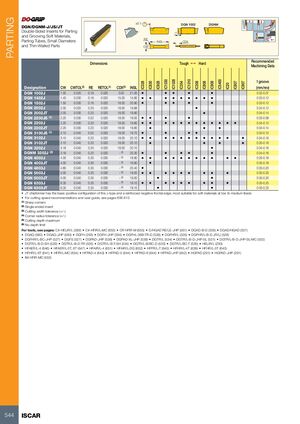

PARTING ±0.1 DGN 1002 DGNM DGN/DGNM-J/JS/JT Double-Sided Inserts for Parting 7° and Grooving Soft Materials, RE Parting Tubes, Small Diameters INSL CDX and Thin-Walled Parts CW Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1028 IC1010 IC5400 IC328 IC830 IC928 IC354 IC308 IC808 IC908 IC807 IC907 IC20 Designation CW CWTOL(3) RE RETOL(4) CDX(5) INSL (mm/rev) DGN 1002J 1.00 0.020 0.16 0.020 3.00 21.00 • • • • • 0.02-0.07 DGN 1402J 1.40 0.030 0.16 0.020 15.00 15.80 • • • • • • • • • 0.03-0.12 DGN 1502J 1.50 0.030 0.16 0.020 18.00 20.90 • • • • • 0.03-0.12 DGN 2002J 2.00 0.020 0.20 0.020 18.00 19.88 • 0.04-0.12 DGN 2002JT 2.00 0.030 0.20 0.020 18.00 19.80 • 0.04-0.14 DGN 2200JS (1) 2.20 0.030 0.02 0.020 18.00 19.00 • • • • 0.03-0.08 DGN 2202J 2.20 0.030 0.20 0.020 18.00 19.80 • • • • • • • • • • • • 0.04-0.12 DGN 2202JT 2.20 0.030 0.20 0.020 18.00 19.80 • • • 0.04-0.14 DGN 3100JS (1) 3.10 0.040 0.02 0.020 18.00 19.70 • • • • 0.03-0.10 DGN 3102J 3.10 0.040 0.20 0.020 18.00 20.10 • • • • • • • • • • • • 0.04-0.16 DGN 3102JT 3.10 0.040 0.20 0.020 18.00 20.10 • • • • 0.05-0.18 DGN 3202J 3.18 0.040 0.20 0.020 18.00 20.10 • 0.04-0.16 DGNM 3202J (2) 3.18 0.040 0.20 0.020 - (6) 20.30 • • • • • 0.04-0.16 DGN 4003J 4.00 0.040 0.30 0.030 - (6) 18.90 • • • • • • • • • • • 0.05-0.18 DGN 4003JT 4.00 0.040 0.30 0.030 - (6) 18.90 • 0.05-0.18 DGN 4803J 4.80 0.040 0.30 0.030 - (6) 20.40 • 0.05-0.20 DGN 5003J 5.00 0.040 0.30 0.030 - (6) 19.00 • • • • • • • • • 0.05-0.20 DGN 5003JT 5.00 0.040 0.30 0.030 - (6) 19.00 • • 0.05-0.20 DGN 6303J 6.35 0.040 0.35 0.030 - (6) 19.10 • • • • • • • • • 0.05-0.25 DGN 6303JT 6.35 0.040 0.35 0.030 - (6) 19.10 • • 0.05-0.25 • JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds • For cutting speed recommendations and user guide, see pages 606-615 (1) Sharp corners (2) Single-ended insert (3) Cutting width tolerance (+/-) (4) Corner radius tolerance (+/-) (5) Cutting depth maximum (6) No depth limit For tools, see pages: C#-HELIR/L (289) • C#-HFIR/L-MC (653) • CR HFIR-M (655) • D/HGAD RE/LE-JHP (561) • DGAD-B-D (538) • DGAD/HGAD (537) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHL-26B-TR-D (528) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFHR/L-BC-JHP (527) • DGFS (527) • DGPAD-JHP (538) • DGPAD-XL-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B-D-TR (535) • DGTR/L-B-T-SH (534) • DGTR/L-B/BC-D (533) • DGTR/L-BC-T (535) • HELIR/L (290) • HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HFFR/L-T (645) • HFHR/L-4T (639) • HFHR/L-5T (640) • HFHR/L-6T (641) • HFIR/L-MC (654) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HFPAD-JHP (642) • HGPAD (291) • HGPAD-JHP (291) • IM-HFIR-MC (653) 544 ISCAR
