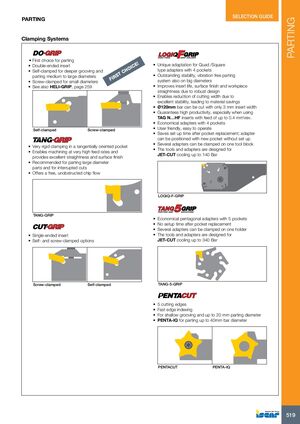

SELECTION GUIDE PARTING PARTING Clamping Systems • First choice for parting ! ICE • Double-ended insert • Unique adaptation for Quad /Square O type adapters with 4 pockets • Self-clamped for deeper grooving and CH parting medium to large diameters ST • Outstanding stability, vibration free parting • Screw-clamped for small diameters FIR system also on big diameters • See also HELI-GRIP, page 259 • Improves insert life, surface finish and workpiece straightness due to robust design • Enables reduction of cutting width due to excellent stability, leading to material savings • Ø120mm bar can be cut with only 3 mm insert width • Guarantees high productivity, especially when using TAG N…HF inserts with feed of up to 0.4 mm\rev. • Economical adapters with 4 pockets Self-clamped Screw-clamped • User friendly, easy to operate • Saves set up time after pocket replacement; adapter can be positioned with new pocket without set up • Several adapters can be clamped on one tool block • Very rigid clamping in a tangentially oriented pocket • The tools and adapters are designed for • Enables machining at very high feed rates and JET-CUT cooling up to 140 Bar provides excellent straightness and surface finish • Recommended for parting large diameter parts and for interrupted cuts • Offers a free, unobstructed chip flow LOGIQ-F-GRIP TANG-GRIP • Economical pentagonal adapters with 5 pockets • No setup time after pocket replacement • Several adapters can be clamped on one holder • Single-ended insert • The tools and adapters are designed for • Self- and screw-clamped options JET-CUT cooling up to 340 Bar Screw-clamped Self-clamped TANG-5-GRIP • 5 cutting edges • Fast edge indexing • For shallow grooving and up to 20 mm parting diameter • PENTA-IQ for parting up to 40mm bar diameter PENTACUT PENTA-IQ 519
