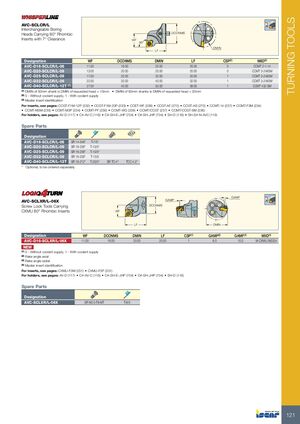

TURNING TOOLS AVC-SCLCR/L 95º Interchangeable Boring Heads Carrying 80° Rhombic DCONMS Inserts with 7° Clearance WF 95° DMIN LF Designation WF DCONMS DMIN LF CSP(2) MIID(3) AVC-D16-SCLCR/L-06 11.00 16.00 20.00 20.00 0 CCMT 2-1-14 AVC-D20-SCLCR/L-09 13.00 20.00 25.00 20.00 0 CCMT 3-2-M3M AVC-D25-SCLCR/L-09 17.00 25.00 32.00 20.00 1 CCMT 3-2-M3M AVC-D32-SCLCR/L-09 22.00 32.00 40.00 32.00 1 CCMT 3-2-M3M AVC-D40-SCLCR/L-12T (1) 27.00 40.00 50.00 38.00 1 CCMT 432-SM (1) DMIN of 50mm shank is DMIN of requested head + 10mm • DMIN of 60mm shanks is DMIN of requested head + 20mm (2) 0 - Without coolant supply, 1 - With coolant supply (3) Master insert identification For inserts, see pages: CCGT-F1M-12P (232) • CCGT-F1M-20P (233) • CCET-WF (238) • CCGT-AF (270) • CCGT-AS (270) • CCMT-14 (237) • CCMT-F3M (234) • CCMT-M3M (235) • CCMT-M3P (234) • CCMT-PF (236) • CCMT-WG (238) • CCMT/CCGT (237) • CCMT/CCGT-SM (236) For holders, see pages: AV-D (117) • C#-AV-C (118) • C#-SH-E-JHP (704) • C#-SH-JHP (704) • SH-D (116) • SH-S#-N-AVC (119) Spare Parts Designation AVC-D16-SCLCR/L-06 SR 14-548* T-7/5* AVC-D20-SCLCR/L-09 SR 16-236* T-15/5* AVC-D25-SCLCR/L-09 SR 16-236* T-15/5* AVC-D32-SCLCR/L-09 SR 16-236* T-15/5 AVC-D40-SCLCR/L-12T SR 16-212* T-20/5* SR TC-4* TCC 4-2* * Optional, to be ordered separately GAMF AVC-SCLXR/L-06X GAMP 95º Screw Lock Tools Carrying DCONMS CXMU 80° Rhombic Inserts WF LF DMIN Designation WF DCONMS DMIN LF CSP(1) GAMP(2) GAMF(3) MIID(4) AVC-D16-SCLXR/L-06X 11.00 16.00 20.00 20.00 1 6.0 10.0 M CXMU 060204 NEW (1) 0 - Without coolant supply, 1 - With coolant supply (2) Rake angle axial (3) Rake angle radial (4) Master insert identification For inserts, see pages: CXMU-F3M (231) • CXMU-F3P (231) For holders, see pages: AV-D (117) • C#-AV-C (118) • C#-SH-E-JHP (704) • C#-SH-JHP (704) • SH-D (116) Spare Parts Designation AVC-SCLXR/L-06X SR M2.5-T8-MT T-8/5 121
