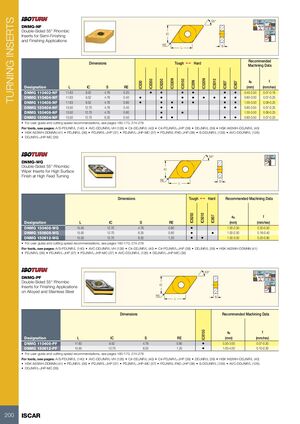

TURNING INSERTS 55° 60° 93º-95º MAX DNMG-NF 62.5º 30º MAX Double-Sided 55° Rhombic 27° IC MAX Inserts for Semi-Finishing 93° and Finishing Applications RE S L Recommended Dimensions Tough 1 Hard Machining Data IC530N IC520N ap f IC8350 IC8250 IC8150 IC5010 IC20N IC830 IC807 IC907 Designation L IC S RE (mm) (mm/rev) DNMG 110402-NF 11.63 9.52 4.76 0.20 • • • • • • 0.40-2.50 0.07-0.18 DNMG 110404-NF 11.63 9.52 4.76 0.40 • • • • • • • • 0.80-3.00 0.07-0.25 DNMG 110408-NF 11.63 9.52 4.76 0.80 • • • • • • • 1.00-3.50 0.08-0.25 DNMG 150404-NF 15.50 12.70 4.76 0.40 • • • • 0.80-3.50 0.07-0.25 DNMG 150408-NF 15.50 12.70 4.76 0.80 • • 1.00-3.50 0.08-0.25 DNMG 150604-NF 15.50 12.70 6.35 0.40 • • • • 0.80-3.50 0.07-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • AVC-DDUNR/L-VH (128) • C#-DDJNR/L (40) • C#-PDJNR/L-JHP (38) • DDJNR/L (39) • HSK A63WH-DDJNR/L (40) • HSK A63WH-DDNNN (41) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) • PDJNR/L-PAD-JHP (38) • S-DDUNR/L (139) • AVC-DDUNR/L (126) • DDJNR/L-JHP-MC (39) 55° 27° MAX DNMG-WG 93° Double-Sided 55° Rhombic IC Wiper Inserts for High Surface Finish at High Feed Turning RE S L Dimensions Tough 1 Hard Recommended Machining Data IC8250 IC5010 ap f IC807 Designation L IC S RE (mm) (mm/rev) DNMG 150408-WG 15.50 12.70 4.76 0.80 • 1.00-2.50 0.20-0.50 DNMG 150608-WG 15.50 12.70 6.35 0.80 • • 1.00-2.50 0.18-0.40 DNMG 150612-WG 15.50 12.70 6.35 1.20 • • 1.00-3.00 0.20-0.80 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • AVC-DDUNR/L-VH (128) • C#-DDJNR/L (40) • C#-PDJNR/L-JHP (38) • DDJNR/L (39) • HSK A63WH-DDNNN (41) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) • AVC-DDUNR/L (126) • DDJNR/L-JHP-MC (39) 55° 60° 93º-95º MAX DNMG-PF 62.5º 30º MAX Double-Sided 55° Rhombic 27° IC MAX Inserts for Finishing Applications 93° on Alloyed and Stainless Steel RE S L Dimensions Recommended Machining Data ap f IC8150 Designation L IC S RE (mm) (mm/rev) DNMG 110408-PF 11.63 9.52 4.76 0.80 • 0.30-3.00 0.07-0.30 DNMG 150612-PF 15.50 12.70 6.35 1.20 • 1.00-4.00 0.10-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • AVC-DDUNR/L-VH (128) • C#-DDJNR/L (40) • C#-PDJNR/L-JHP (38) • DDJNR/L (39) • HSK A63WH-DDJNR/L (40) • HSK A63WH-DDNNN (41) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) • PDJNR/L-PAD-JHP (38) • S-DDUNR/L (139) • AVC-DDUNR/L (126) • DDJNR/L-JHP-MC (39) 200 ISCAR
