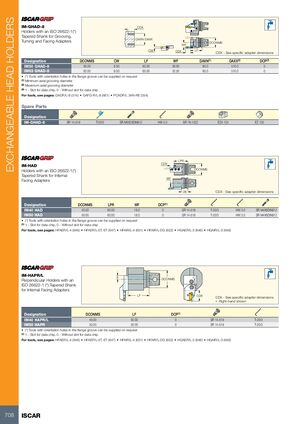

EXCHANGEABLE HEAD HOLDERS IM-GHAD-8 CDX Holders with an ISO 26622-1(*) Tapered Shank for Grooving, DAXN-DAXX Turning and Facing Adapters DCONMS WF CW CDX LF CDX - See specific adapter dimensions Designation DCONMS CW LF WF DAXN(1) DAXX(2) DCP(3) IM50 GHAD-8 50.00 8.00 60.00 26.00 80.0 510.0 0 IM63 GHAD-8 63.00 8.00 65.00 32.50 80.0 510.0 0 • (*) Tools with orientation holes in the flange groove can be supplied on request (1) Minimum axial grooving diameter (2) Maximum axial grooving diameter (3) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: GADR/L-8 (314) • GAFG-R/L-8 (661) • PCADR/L 34N-RE (354) Spare Parts Designation IM-GHAD-8 SR 14-519 T-20/5 SR M6X25DIN912 HW 5.0 SR 76-1022 EZA 125 EZ 125 LPR CDX IM-HAD DCONMS Holders with an ISO 26622-1(*) Tapered Shank for Internal WF Facing Adapters 26 CDX - See specific adapter dimensions Designation DCONMS LPR WF DCP(1) IM40 HAD 40.00 60.00 18.0 0 SR 14-519 T-20/3 HW 3.0 SR M4X6DIN912 IM50 HAD 50.00 60.00 18.0 0 SR 14-519 T-20/3 HW 3.0 SR M4X6DIN912 • (*) Tools with orientation holes in the flange groove can be supplied on request (1) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HGAER/L-3 (646) • HGAIR/L-3 (648) IM-HAPR/L 8 Perpendicular Holders with an DCONMS ISO 26622-1 (*) Tapered Shank for Internal Facing Adapters LF CDX CDX - See specific adapter dimensions • Right-hand shown Designation DCONMS LF DCP(1) IM40 HAPR/L 40.00 50.00 0 SR 14-519 T-20/3 IM50 HAPR 50.00 50.00 0 SR 14-519 T-20/3 • (*) Tools with orientation holes in the flange groove can be supplied on request (1) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HGAER/L-3 (646) • HGAIR/L-3 (648) 708 ISCAR
