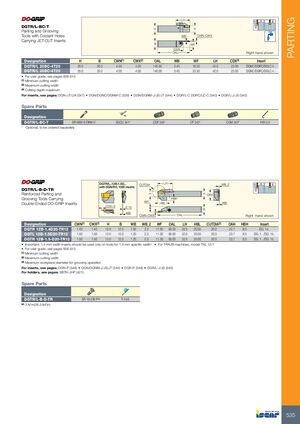

PARTING LH DGTR/L-BC-T H H Parting and Grooving Tools with Coolant Holes WB CWN-CWX Carrying JET-CUT Inserts B WF CDX OAL Right-hand shown Designation H B CWN(1) CWX(2) OAL WB WF LH CDX(3) Insert DGTR/L 20BC-4T25 20.0 20.0 4.00 4.00 140.00 3.40 18.30 42.0 25.00 DGNC/DGRC/DGLC 4... DGTR/L 25BC-4T25 25.0 25.0 4.00 4.00 140.00 3.40 23.30 42.0 25.00 DGNC/DGRC/DGLC 4... • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum For inserts, see pages: DGN-UT/UA (547) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGR/L-C DGRC/LC-C (540) • DGR/L-J/JS (545) Spare Parts Designation DGTR/L-BC-T SR M6X16 DIN912 SGCU 341* CGF 343* CF 343* CGM 343* HW 5.0 * Optional, to be ordered separately DGTR/L..12B-1.5D... CUTDIA LH WB_2 with DGN/R/L 1000 inserts DGTR/L-B-D-TR Reinforced Parting and H H OAH Grooving Tools Carrying HBH WF WB Double-Ended DO-GRIP Inserts HBL CDX=3 0.75 B WB CWN-CWX OAL Right -hand shown Designation CWN(1) CWX(2) H B WB WB_2 WF OAL LH HBL CUTDIA(3) OAH HBH Insert DGTR 12B-1.4D20-TR12 1.40 1.40 12.0 12.0 1.00 2.3 11.50 95.00 32.5 20.00 20.0 23.7 8.0 DG. 14.. DGTL 12B-1.5D20-TR12 1.00 1.50 12.0 12.0 1.20 2.3 11.30 95.00 32.5 20.00 20.0 23.7 8.0 DG. 1.../DG. 15.. DGTR 12B-1.5-D20-TR12 1.00 1.50 12.0 12.0 1.20 2.3 11.30 95.00 32.5 20.00 20.0 23.7 8.0 DG. 1.../DG. 15.. • Important: 1.4 mm width inserts should be used only on tools for 1.4 mm specific width! • For TRAUB machines, model TNL 12/7 • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum workpiece diameter for grooving operation For inserts, see pages: DGN-P (548) • DGN/DGNM-J/JS/JT (544) • DGR-P (548) • DGR/L-J/JS (545) For holders, see pages: SBTH-JHP (421) Spare Parts Designation DGTR/L-B-D-TR SR 16-236 P(a) T-15/5 (a) 3 N*m(26.5 lbf*in) 535
