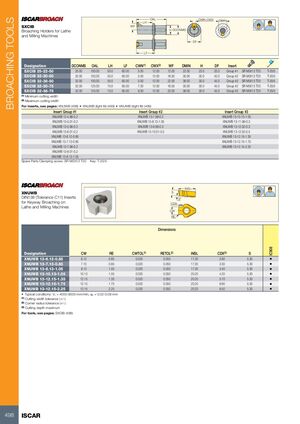

BROACHING TOOLS OAL CWN-CWX DMIN LH SXCIB WF Broaching Holders for Lathe H DCONMS and Milling Machines DF LF Designation DCONMS OAL LH LF CWN(1) CWX(2) WF DMIN H DF Insert SXCIB 25-22-50 25.00 100.00 50.0 60.00 5.00 12.00 12.00 22.00 23.0 33.0 Group #1 SR M5X13 T20 T-20/5 SXCIB 32-30-50 32.00 100.00 50.0 60.00 5.00 12.00 16.50 30.00 30.0 45.0 Group #2 SR M5X13 T20 T-20/5 SXCIB 32-38-50 32.00 100.00 50.0 60.00 5.00 12.00 22.00 38.00 30.0 45.0 Group #3 SR M5X13 T20 T-20/5 SXCIB 32-30-75 32.00 125.00 75.0 85.00 7.00 12.00 16.50 30.00 30.0 45.0 Group #2 SR M5X13 T20 T-20/5 SXCIB 32-38-75 32.00 125.00 75.0 85.00 9.00 12.00 22.00 38.00 30.0 45.0 Group #3 SR M5X13 T20 T-20/5 (1) Minimum cutting width (2) Maximum cutting width For inserts, see pages: XNUWB (498) • XNUWB (light fit) (499) • XNUWB (tight fit) (499) Insert Group #1 Insert Group #2 Insert Group #3 XNUWB 13-4�98-0�2 XNUWB 13-7�98-0�2 XNUWB 13-10�13-1�05 XNUWB 13-5�01-0�2 XNUWB 13-8�13-1�05 XNUWB 13-11�98-0�3 XNUWB 13-5�98-0�2 XNUWB 13-9�98-0�3 XNUWB 13-12�02-0�3 XNUWB 13-6�01-0�2 XNUWB 13-10�01-0�3 XNUWB 13-12�02-0�5 XNUWB 13-6�12-0�85 XNUWB 13-12�15-1�35 XNUWB 13-7�13-0�85 XNUWB 13-12�15-1�75 XNUWB 13-7�98-0�2 XNUWB 13-12�15-2�25 XNUWB 13-8�01-0�2 XNUWB 13-8�13-1�05 Spare Parts Clamping screw: SR M5X13 T20 Key: T-20/5 INSL XNUWB S DIN138 (Tolerance C11) Inserts 5° for Keyway Broaching on CDX Lathe and Milling Machines CW RE Dimensions IC908 Designation CW RE CWTOL(1) RETOL(2) INSL CDX(3) S XNUWB 13-6.12-0.85 6.12 0.85 0.020 0.050 17.30 2.60 5.30 • XNUWB 13-7.13-0.85 7.13 0.85 0.020 0.050 17.30 3.30 5.30 • XNUWB 13-8.13-1.05 8.13 1.05 0.020 0.050 17.30 3.40 5.30 • XNUWB 13-10.13-1.05 10.13 1.05 0.020 0.050 20.20 4.20 5.30 • XNUWB 13-12.15-1.35 12.15 1.35 0.020 0.050 20.20 5.10 5.30 • XNUWB 13-12.15-1.75 12.15 1.75 0.020 0.050 20.20 6.60 5.30 • XNUWB 13-12.15-2.25 12.15 2.25 0.020 0.050 20.20 8.50 5.30 • • Typical conditions: Vc = 4000-8000 mm/min, ap = 0.02-0.08 mm (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: SXCIB (498) 498 ISCAR
