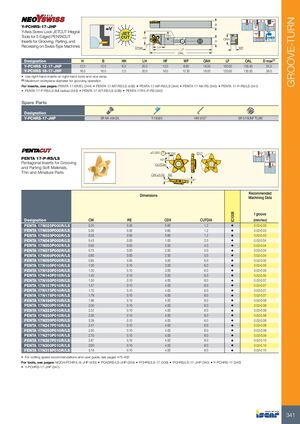

GROOVE-TURN B Y-PCHRS-17-JHP Y-Axis Screw Lock JETCUT Integral Tools for 5 Edged PENTACUT HF HH OAH Inserts for Grooving, Parting, and H Bar Max Recessing on Swiss-Type Machines Dmax LH WF LF OAL Designation H B HH LH HF WF OAH LF OAL D max(1) Y-PCHRS 12-17-JHP 12.0 12.0 6.0 20.0 12.0 8.60 18.00 100.00 105.50 25.0 Y-PCHRS 16-17-JHP 16.0 16.0 2.0 20.0 16.0 12.30 18.00 125.00 130.50 38.0 • Use right-hand inserts on right-hand tools and vice versa (1) Maximum workpiece diameter for grooving operation For inserts, see pages: PENTA 17-ER/EL (344) • PENTA 17-MT-RS/LS (438) • PENTA 17-NP-RS/LS (344) • PENTA 17-NX-RS (345) • PENTA 17-P-RS/LS (341) • PENTA 17-P-RS/LS (full radius) (343) • PENTA 17-WT-RS/LS (438) • PENTA 17R/L-P-RS (342) Spare Parts Designation Y-PCHRS-17-JHP SR M4-39432L T-1508/5 HW 5/32" SR 5/16UNF TL360 ±0.025 CDX Ø17 PENTA 17-P-RS/LS 10° Pentagonal Inserts for Grooving CUTDIA and Parting Soft Materials, Thin and Miniature Parts CW ±0.02 RE 4° Recommended Dimensions Machining Data f groove IC1008 Designation CW RE CDX CUTDIA (mm/rev) PENTA 17N025P000R/LS 0.25 0.00 0.60 1.2 • 0.02-0.03 PENTA 17N030P000R/LS 0.30 0.00 0.60 1.2 • 0.02-0.03 PENTA 17N033P000R/LS 0.33 0.00 0.60 1.2 • 0.02-0.03 PENTA 17N043P000R/LS 0.43 0.00 1.00 2.0 • 0.02-0.04 PENTA 17N050P000R/LS 0.50 0.00 2.00 4.0 • 0.02-0.04 PENTA 17N075P000R/LS 0.75 0.00 2.50 5.0 • 0.02-0.04 PENTA 17N080P000R/LS 0.80 0.00 2.50 5.0 • 0.02-0.04 PENTA 17N095P000R/LS 0.95 0.00 3.00 6.0 • 0.02-0.05 PENTA 17N100P010R/LS 1.00 0.10 3.00 6.0 • 0.02-0.05 PENTA 17N120P010R/LS 1.20 0.10 3.00 6.0 • 0.02-0.05 PENTA 17N140P010R/LS 1.40 0.10 3.00 6.0 • 0.02-0.05 PENTA 17N150P010R/LS 1.50 0.10 4.00 8.0 • 0.02-0.07 PENTA 17N157P010R/LS 1.57 0.10 4.00 8.0 • 0.02-0.07 PENTA 17N170P010R/LS 1.70 0.10 4.00 8.0 • 0.02-0.07 PENTA 17N178P010R/LS 1.78 0.10 4.00 8.0 • 0.02-0.07 PENTA 17N196P010R/LS 1.96 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N200P010R/LS 2.00 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N222P010R/LS 2.22 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N230P010R/LS 2.30 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N239P010R/LS 2.39 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N247P010R/LS 2.47 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N250P010R/LS 2.50 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N270P010R/LS 2.70 0.10 4.00 8.0 • 0.02-0.09 PENTA 17N287P010R/LS 2.87 0.10 4.00 8.0 • 0.02-0.10 PENTA 17N300P010R/LS 3.00 0.10 4.00 8.0 • 0.02-0.10 PENTA 17N318P010R/LS 3.18 0.10 4.00 8.0 • 0.02-0.10 • For cutting speed recommendations and user guide, see pages 475-492 For tools, see pages: NQCH-PCHR/L-S-JHP (433) • PCADRS/LS-JHP (354) • PCHRS/LS-17 (339) • PCHRS/LS-17-JHP (340) • Y-PCHRS-17 (340) • Y-PCHRS-17-JHP (341) 341
