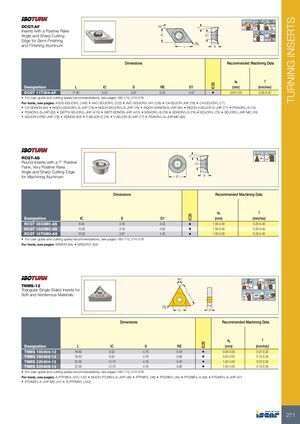

TURNING INSERTS 27° 60° MAX MAX 107.5° DCGT-AF 55˚ 7˚ 16º 93° 62.5º Inserts with a Positive Rake MAX 29° MAX 93º-95º Angle and Sharp Cutting IC D1 91° Edge for Semi-Finishing 30º MAX RE and Finishing Aluminum L S Dimensions Recommended Machining Data ap f IC20 Designation L IC S RE D1 (mm) (mm/rev) DCGT 11T304-AF 11.60 9.52 3.97 0.40 4.40 • 0.50-2.50 0.05-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SDUCR/L (148) • AVC-SDUCR/L (122) • AVC-SDUCR/L-VH (128) • C#-SDJCR-JHP (78) • C#-SDJCR/L (77) • C#-SDNCN (84) • NQCH-SDACR/L-S-JHP (79) • NQCH-SDJCR/L-S-JHP (76) • NQCH-SDNCN-S-JHP (84) • NQCH-Y-SDJCR-S-JHP (77) • PDACR/L-S (74) • PDACR/L-S-JHP (82) • SBTT#-SDJCR/L-JHP (415) • SBTT-SDNCN-JHP (415) • SDACR/L-S (79) • SDHCR/L-S (79) • SDJCR/L (75) • SDJCR/L-JHP-MC (76) • SDJCR/L-PAD-JHP (78) • SDNCN (83) • Y-SDJCR-S (76) • Y-SDJCR-S-JHP (77) • PDACR/L-S-JHP-MC (82) 7˚ RCGT-AS Round Inserts with a 7° Positive D1 Flank, Very Positive Rake Angle and Sharp Cutting Edge S for Machining Aluminum IC Dimensions Recommended Machining Data ap f IC20 Designation IC S D1 (mm) (mm/rev) RCGT 0803M0-AS 8.00 3.18 3.40 • 1.00-4.00 0.20-0.40 RCGT 1003M0-AS 10.00 3.18 4.00 • 1.00-5.00 0.20-0.40 RCGT 10T3M0-AS 10.00 3.97 4.40 • 1.00-5.00 0.20-0.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: SRDCN (94) • SRGCR/L (93) 60° 55° 22°MAX MAX 91º TNMS-12 60º 93 º Triangular Single-Sided Inserts for Soft and Nonferrous Materials L 91º 95º 91º RE IC S Dimensions Recommended Machining Data ap f IC20 Designation L IC S RE (mm) (mm/rev) TNMS 160404-12 16.50 9.52 4.76 0.40 • 0.50-3.00 0.07-0.32 TNMS 160408-12 16.50 9.52 4.76 0.80 • 0.50-3.00 0.10-0.35 TNMS 220404-12 22.00 12.70 4.76 0.40 • 1.00-4.00 0.07-0.32 TNMS 220408-12 22.00 12.70 4.76 0.80 • 1.00-4.00 0.10-0.35 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • NQCH-PTJNR/L-S-JHP (48) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-PTFNR/L (143) 271
