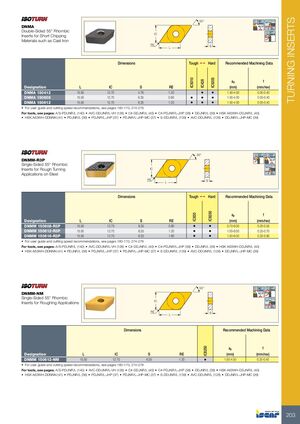

Токарные инструменты Iscar (часть 1) 2026 - страница 205

TURNING INSERTS 55° 60° 93º-95º MAX DNMA 62.5º 30º MAX Double-Sided 55° Rhombic 27° IC MAX Inserts for Short Chipping 93° Materials such as Cast Iron RE S L Dimensions Tough 1 Hard Recommended Machining Data IC5010 IC5005 ap f IC428 Designation L IC S RE (mm) (mm/rev) DNMA 150412 15.50 12.70 4.76 1.20 • • 1.50-4.00 0.05-0.40 DNMA 150608 15.50 12.70 6.35 0.80 • • • 1.50-4.00 0.03-0.40 DNMA 150612 15.50 12.70 6.35 1.20 • • • 1.50-4.00 0.05-0.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • AVC-DDUNR/L-VH (128) • C#-DDJNR/L (40) • C#-PDJNR/L-JHP (38) • DDJNR/L (39) • HSK A63WH-DDJNR/L (40) • HSK A63WH-DDNNN (41) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) • S-DDUNR/L (139) • AVC-DDUNR/L (126) • DDJNR/L-JHP-MC (39) 55° 27° MAX 60° MAX DNMM-R3P 93° 62.5º Single-Sided 55° Rhombic 93º-95º Inserts for Rough Turning IC Applications on Steel 30º MAX RE S L Dimensions Tough 1 Hard Recommended Machining Data IC8250 ap f IC830 Designation L IC S RE (mm) (mm/rev) DNMM 150608-R3P 15.50 12.70 6.35 0.80 • • 0.70-6.00 0.20-0.55 DNMM 150612-R3P 15.50 12.70 6.35 1.20 • • 1.00-6.00 0.25-0.70 DNMM 150616-R3P 15.50 12.70 6.35 1.60 • • 1.50-6.00 0.32-0.90 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • AVC-DDUNR/L-VH (128) • C#-DDJNR/L (40) • C#-PDJNR/L-JHP (38) • DDJNR/L (39) • HSK A63WH-DDJNR/L (40) • HSK A63WH-DDNNN (41) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) • S-DDUNR/L (139) • AVC-DDUNR/L (126) • DDJNR/L-JHP-MC (39) 55° 60° 27° MAX MAX DNMM-NM 62.5º 93° Single-Sided 55° Rhombic IC 93º-95º Inserts for Roughing Applications 30º MAX RE S L Dimensions Recommended Machining Data ap f IC8250 Designation L IC S RE (mm) (mm/rev) DNMM 150612-NM 15.50 12.70 6.35 1.20 • 1.50-4.50 0.25-0.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • AVC-DDUNR/L-VH (128) • C#-DDJNR/L (40) • C#-PDJNR/L-JHP (38) • DDJNR/L (39) • HSK A63WH-DDJNR/L (40) • HSK A63WH-DDNNN (41) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) • S-DDUNR/L (139) • AVC-DDUNR/L (126) • DDJNR/L-JHP-MC (39) 203
