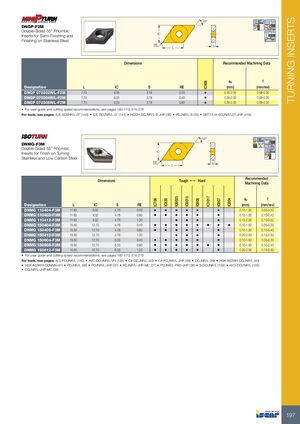

TURNING INSERTS 55° 27° MAX 100º DNGP-F2M 93° Double-Sided 55° Rhombic 15.5º MAX IC Inserts for Semi-Finishing and Finishing on Stainless Steel 93º RE S L Dimensions Recommended Machining Data ap f IC908 Designation L IC S RE (mm) (mm/rev) DNGP 070302R/L-F2M 7.70 6.35 3.18 0.20 • 0.30-2.00 0.08-0.30 DNGP 070304R/L-F2M 7.70 6.35 3.18 0.40 • 0.30-2.00 0.08-0.30 DNGP 070308R/L-F2M 7.70 6.35 3.18 0.80 • 0.30-2.00 0.08-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E-SDXNR/L-07 (140) • A/E-SDZNR/L-07 (141) • NQCH-SDJNR/L-S-JHP (36) • PDJNR/L-S (35) • SBTT/L/A-SDJNR/L07-JHP (419) 55° 60° 93º-95º MAX DNMG-F3M 62.5º 30º MAX Double-Sided 55° Rhombic 27° IC MAX Inserts for Finish on Turning 93° Stainless and Low Carbon Steel RE S L Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC6015 IC1017 IC706 IC830 IC806 IC807 IC804 Designation L IC S RE (mm) (mm/rev) DNMG 110404-F3M 11.63 9.52 4.76 0.40 • • • • • • 0.10-1.50 0.05-0.32 DNMG 110408-F3M 11.63 9.52 4.76 0.80 • • • • • • 0.10-1.50 0.10-0.42 DNMG 110412-F3M 11.63 9.52 4.76 1.20 • • • • 0.15-2.00 0.15-0.52 DNMG 150404-F3M 15.50 12.70 4.76 0.40 • • • • • • • • 0.10-1.50 0.05-0.30 DNMG 150408-F3M 15.50 12.70 4.76 0.80 • • • • • • 0.10-1.50 0.10-0.40 DNMG 150412-F3M 15.50 12.70 4.76 1.20 • • • • 0.20-2.50 0.15-0.50 DNMG 150604-F3M 15.50 12.70 6.35 0.40 • • • • • • 0.10-1.50 0.05-0.30 DNMG 150608-F3M 15.50 12.70 6.35 0.80 • • • • • • • 0.10-1.50 0.10-0.40 DNMG 150612-F3M 15.50 12.70 6.35 1.20 • • • • • • 0.20-2.50 0.15-0.50 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • AVC-DDUNR/L-VH (128) • C#-DDJNR/L (40) • C#-PDJNR/L-JHP (38) • DDJNR/L (39) • HSK A63WH-DDJNR/L (40) • HSK A63WH-DDNNN (41) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) • PDJNR/L-PAD-JHP (38) • S-DDUNR/L (139) • AVC-DDUNR/L (126) • DDJNR/L-JHP-MC (39) 197
