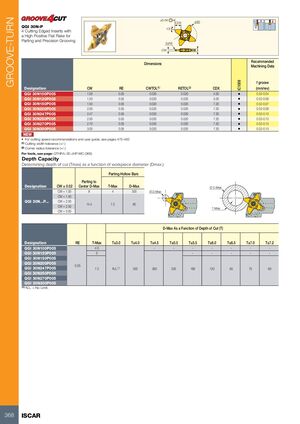

GROOVE-TURN ±0.04 CDX ø30 QGI 30N-P 13˚ 4 Cutting Edged Inserts with a High Positive Flat Rake for Parting and Precision Grooving 2xRE CW 4 Recommended Dimensions Machining Data f groove IC1008 Designation CW RE CWTOL(1) RETOL(2) CDX (mm/rev) QGI 30N100P005 1.00 0.05 0.020 0.020 4.00 • 0.02-0.04 QGI 30N120P005 1.20 0.05 0.020 0.020 5.00 • 0.02-0.06 QGI 30N150P005 1.50 0.05 0.020 0.020 7.20 • 0.02-0.07 QGI 30N200P005 2.00 0.05 0.020 0.020 7.20 • 0.02-0.08 QGI 30N247P005 2.47 0.05 0.020 0.020 7.20 • 0.02-0.10 QGI 30N250P005 2.50 0.05 0.020 0.020 7.20 • 0.02-0.10 QGI 30N270P005 2.70 0.05 0.020 0.020 7.20 • 0.02-0.10 QGI 30N300P005 3.00 0.05 0.020 0.020 7.20 • 0.02-0.10 NEW • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see page: QTHR/L-30-JHP-MC (366) Depth Capacity Determining depth of cut (Tmax) as a function of workpiece diameter (Dmax.) Parting Hollow Bars Parting to Designation CW ± 0.02 Center D-Max T-Max D-Max Ø D-Max CW = 1�00 8 4 300 Ø D-Max CW = 1�50 QGI 30N...P... CW = 2�00 14�4 7�2 60 CW = 2�50 T-Max CW = 3�00 D-Max As a Function of Depth of Cut (T) Designation RE T-Max T≤3.0 T≤4.0 T≤4.5 T≤0.5 T≤5.5 T≤6.0 T≤6.5 T≤7.0 T≤7.2 QGI 30N100P005 4�0 - - - - - - - QGI 30N120P005 5 - - - - - QGI 30N150P005 QGI 30N200P005 0�05 QGI 30N247P005 7�2 N�L�(1) 300 260 200 160 120 95 75 60 QGI 30N250P005 QGI 30N270P005 QGI 30N300P005 (1) N�L� = No Limit� 368 ISCAR
