Токарные инструменты Iscar (часть 1) 2026 - страница 334

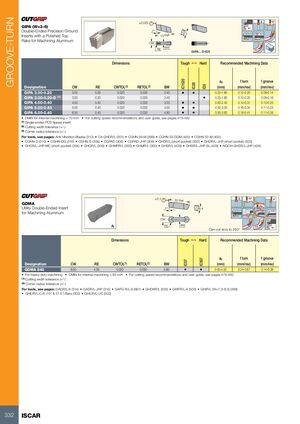

GROOVE-TURN ±0.025 GIPA (W=3-6) Double-Ended Precision Ground 7° 5 Inserts with a Polished Top 15 Ref. Rake for Machining Aluminum CW RE BW GIPA…D-ID5 Dimensions Tough 1 Hard Recommended Machining Data ap f turn f groove IC1520 IC20 ID5 Designation CW RE CWTOL(2) RETOL(3) BW (mm) (mm/rev) (mm/rev) GIPA 3.00-0.20 3.00 0.20 0.020 0.030 2.40 • • 0.25-1.80 0.12-0.20 0.08-0.14 GIPA 3.00-0.20-D (1) 3.00 0.20 0.020 0.030 2.40 • 0.25-1.80 0.12-0.25 0.09-0.16 GIPA 4.00-0.40 4.00 0.40 0.020 0.030 3.20 • • 0.50-2.40 0.14-0.31 0.10-0.20 GIPA 5.00-0.40 5.00 0.40 0.020 0.030 4.00 • • 0.50-3.00 0.16-0.34 0.11-0.23 GIPA 6.00-0.40 6.00 0.40 0.020 0.030 4.80 • • 0.50-3.60 0.19-0.41 0.11-0.26 • DMIN for internal machining = 70 mm • For cutting speed recommendations and user guide, see pages 475-492 (1) Single-ended PCD tipped insert (2) Cutting width tolerance (+/-) (3) Corner radius tolerance (+/-) For tools, see pages: Anti-Vibration Blades (312) • C#-GHDR/L (301) • CGHN 26-M (399) • CGHN 32-DGM (400) • CGHN 32-M (400) • CGHN-D (310) • CGHN-DG (310) • CGHN-S (309) • CGPAD (308) • CGPAD-JHP (309) • GHDR/L (short pocket) (302) • GHDR/L-JHP (short pocket) (303) • GHDR/L-JHP-MC (short pocket) (304) • GHGR/L (305) • GHMPR/L (300) • GHMR/L (300) • GHSR/L (428) • GHSR/L-JHP-SL (429) • NQCH-GHSR/L-JHP (428) ±0.1 30 Ref. GDMA Utility Double-Ended Insert 7° 6.4 for Machining Aluminum CW RE BW Can cut arcs to 250° Dimensions Tough 1 Hard Recommended Machining Data ap f turn f groove IC507 IC07 Designation CW RE CWTOL(1) RETOL(2) BW (mm) (mm/rev) (mm/rev) GDMA 840 8.00 4.00 0.050 0.050 5.60 • • 0.00-4.00 0.24-0.67 0.14-0.38 • For heavy-duty machining • DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: GADR/L-8 (314) • GADR/L-JHP (315) • GAFG-R/L-8 (661) • GHDKR/L (503) • GHIFR/L-A (503) • GHIR/L (W=7.0-8.3) (398) • GHIUR/L-C-A (15° & 27.5°) Bars (502) • GHIUR/L-UC (502) 332 ISCAR
