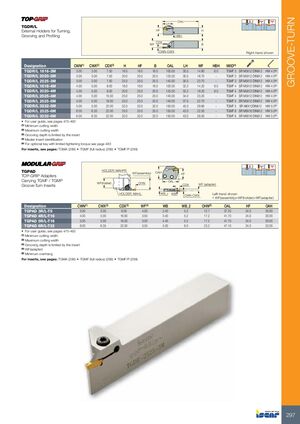

GROOVE-TURN OAL LH TGDR/L External Holders for Turning, HF H Grooving and Profiling HBH CDX WF B CWN-CWX Right-hand shown Designation CWN(1) CWX(2) CDX(3) H HF B OAL LH WF HBH MIID(4) TGDR/L 1616-3M 3.00 3.00 7.50 16.0 16.0 16.0 100.00 30.5 14.80 6.0 TGMF 3 SR M5X12 DIN912 HW 4.0(a) TGDR/L 2020-3M 3.00 3.00 7.50 20.0 20.0 20.0 125.00 30.5 18.70 - TGMF 3 SR M5X12 DIN912 HW 4.0(a) TGDR/L 2525-3M 3.00 3.00 7.50 25.0 25.0 25.0 140.00 30.5 23.70 - TGMF 3 SR M5X12 DIN912 HW 4.0(a) TGDR/L 1616-4M 4.00 5.00 9.00 16.0 16.0 16.0 100.00 32.2 14.20 6.0 TGMF 4 SR M5X12 DIN912 HW 4.0(a) TGDR/L 2020-4M 4.00 5.00 9.00 20.0 20.0 20.0 125.00 32.2 18.20 6.0 TGMF 4 SR M5X12 DIN912 HW 4.0(a) TGDR/L 2525-4M 4.00 5.00 15.50 25.0 25.0 25.0 140.00 34.0 23.20 - TGMF 4 SR M5X12 DIN912 HW 4.0(a) TGDR/L 2525-5M 5.00 5.00 18.00 25.0 25.0 25.0 140.00 37.0 22.70 - TGMF 5 SR M5X12 DIN912 HW 4.0(a) TGDR/L 3232-5M 5.00 5.00 22.00 32.0 32.0 32.0 150.00 45.0 29.80 - TGMF 5 SR M6X12DIN912 HW 5.0(a) TGDR/L 2525-6M 6.00 6.35 22.00 25.0 25.0 25.0 150.00 43.0 22.50 - TGMF 6 SR M6X16 DIN912 HW 5.0(a) TGDR/L 3232-6M 6.00 6.35 22.00 32.0 32.0 32.0 150.00 43.0 29.50 - TGMF 6 SR M6X16 DIN912 HW 5.0(a) • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Grooving depth is limited by the insert (4) Master insert identification (a) For optional key with limited tightening torque see page 483 For inserts, see pages: TGMA (299) • TGMF (full radius) (299) • TGMF/P (299) TGPAD HOLDER: MAHPR WF(assembly) OAH HF TOP-GRIP Adapters Carrying TGMF / TGMP OAL WF(holder) OHN WF (adapter) Groove-Turn Inserts CDX HOLDER: MAHL WB_2 WB Left-hand shown CWN-CWX • WF(assembly)=WF(holder)+WF(adapter) Designation CWN(1) CWX(2) CDX(3) WF(4) WB WB_2 OHN(5) OAL HF OAH TGPAD 3R/L-T9 3.00 3.00 9.00 4.00 2.40 5.2 12.7 37.20 24.0 30.00 TGPAD 4R/L-T16 4.00 5.00 16.00 3.50 3.40 5.2 17.2 41.70 24.0 30.00 TGPAD 5R/L-T16 5.00 5.00 16.00 3.00 4.40 5.2 17.2 41.70 24.0 30.00 TGPAD 6R/L-T22 6.00 6.35 22.00 3.50 5.00 6.0 23.2 47.10 24.0 32.00 • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Grooving depth is limited by the insert (4) WF(adapter) (5) Minimum overhang For inserts, see pages: TGMA (299) • TGMF (full radius) (299) • TGMF/P (299) 297
