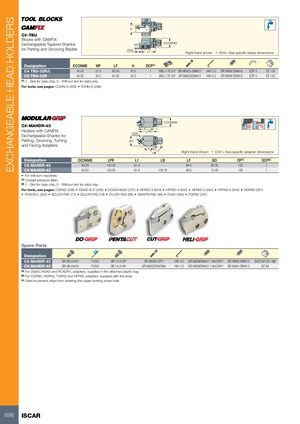

EXCHANGEABLE HEAD HOLDERS H C#-TBU Blocks with CAMFIX Exchangeable Tapered Shanks DCONMS WF for Parting and Grooving Blades OHX LF Right-hand shown • OHX= See specific blade dimensions Designation DCONMS WF LF H DCP(1) C4 TBU-32R/L 40.00 21.0 60.00 32.0 1 BKU 176 307 SR M6X25 DIN912 HW 5.0 SR M6X8 DIN916 EZP 5 EZ 125 C5 TBU-32R 50.00 30.0 64.00 32.0 1 BKU 176 307 SR M6X25DIN912 HW 5.0 SR M6X8 DIN916 EZP 5 EZ 125 (1) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: CGHN-S (309) • TGHN-S (298) DCONMS 45º C#-MAHDR-45 45° LB Holders with CAMFIX LPR CDX Exchangeable Shanks for Parting, Grooving, Turning BD and Facing Adapters L1 45°LF Right-hand shown • CDX = See specific adapter dimensions Designation DCONMS LPR L1 LB LF BD CP(1) DCP(2) C8 MAHDR-45 80.00 130.00 91.9 - 89.0 80.00 100 1 C6 MAHDR-45 63.00 130.00 91.9 105.78 89.0 75.00 100 1 • For mill-turn machines (1) Coolant pressure (Bar) (2) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: CGPAD (308) • DGAD-B-D (538) • DGAD/HGAD (537) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HGPAD (291) • PCADR/L (353) • SCLCR-PAD (71) • SDJCR-PAD (78) • SVJCR-PAD (88) • SWAPR-PAD (96) • TGAD (560) • TGPAD (297) Spare Parts Designation C8 MAHDR-45 SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) SR M8X6 DIN913 SATZ-M12X1-M6 C6 MAHDR-45 SR M5-04451 T-20/5 SR 14-519(a) SR M6X20DIN7984 HW 4.0 SR M6X6DIN551 14H/22H(c) SR M5X4 DIN913 EZ 83 (a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole 696 ISCAR
