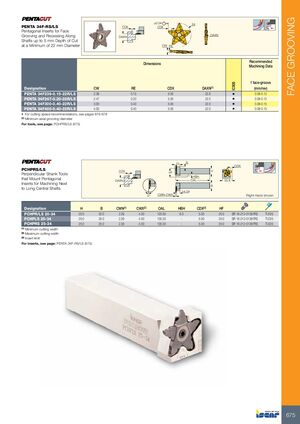

FACE GROOVING ±0.04 34 PENTA 34F-RS/LS CDX CDX Pentagonal Inserts for Face Grooving and Recessing Along DAXN DAXN Shafts up to 5 mm Depth of Cut at a Minimum of 22 mm Diameter CW RE Recommended Dimensions Machining Data f face-groove IC908 Designation CW RE CDX DAXN(1) (mm/rev) PENTA 34F239-0.15-22R/LS 2.39 0.15 5.00 22.0 • 0.08-0.12 PENTA 34F247-0.20-22R/LS 2.47 0.20 5.00 22.0 • 0.08-0.12 PENTA 34F300-0.40-22R/LS 3.00 0.40 5.00 22.0 • 0.08-0.15 PENTA 34F400-0.40-22R/LS 4.00 0.40 5.00 22.0 • 0.08-0.15 • For cutting speed recommendations, see pages 676-678 (1) Minimum axial grooving diameter For tools, see page: PCHPRS/LS (675) 15 6 CDX PCHPRS/LS CDX H Perpendicular Shank Tools HF HBH that Mount Pentagonal DAXN OAL 33.8 Inserts for Machining Next B to Long Central Shafts 14.04 3° CWN-CWX Right-hand shown Designation H B CWN(1) CWX(2) OAL HBH CDX(3) HF PCHPR/LS 20-34 20.0 20.0 2.39 4.00 120.00 6.0 5.00 20.0 SR 16-212-01397RS T-20/5 PCHPLS 25-34 25.0 25.0 2.39 4.00 135.35 - 5.00 25.0 SR 16-212-01397RS T-20/5 PCHPRS 25-34 25.0 25.0 2.39 4.00 135.00 - 5.00 25.0 SR 16-212-01397RS T-20/5 (1) Minimum cutting width (2) Maximum cutting width (3) Insert limit For inserts, see page: PENTA 34F-RS/LS (675) 675
