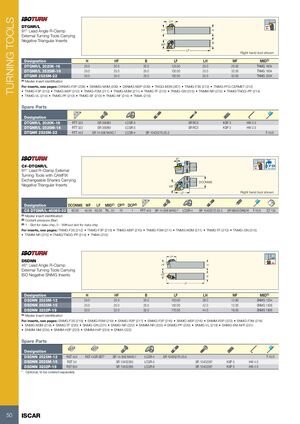

TURNING TOOLS LH DTGNR/L 91º 91° Lead Angle R-Clamp HF H External Turning Tools Carrying Negative Triangular Inserts B WF LF Right hand tool shown Designation H HF B LF LH WF MIID(1) DTGNR/L 2020K-16 20.0 20.0 20.0 125.00 25.0 25.00 TNMG 1604 DTGNR/L 2525M-16 25.0 25.0 25.0 150.00 25.0 32.00 TNMG 1604 DTGNR 2525M-22 25.0 25.0 25.0 150.00 32.0 32.00 TNMG 2204 (1) Master insert identification For inserts, see pages: D6NMG-F3P (209) • D6NMG-M3M (209) • D6NMG-M3P (209) • TNGG-M3N (267) • TNMG-F3S (212) • TNMG-FFG-CERMET (212) • TNMG-F3P (210) • TNMG-M3P (210) • TNMG-F3M (211) • TNMG-M3M (211) • TNMG-TF (213) • TNMG-GN (215) • TNMM-NR (215) • TNMG/TNGG-PP (214) • TNMG-VL (214) • TNMG-PF (213) • TNMG-SF (213) • TNMG-NF (214) • TNMA (215) Spare Parts Designation DTGNR/L 2020K-16 RTT 322 SR 35080I LCGR-3 SR RC3 KSP 3 HW 2.5 DTGNR/L 2525M-16 RTT 322 SR 35080I LCGR-3 SR RC3 KSP 3 HW 2.5 DTGNR 2525M-22 RTT 443 SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 T-15/5 6° C#-DTGNR/L 91º 70 Bar Max 91° Lead R-Clamp External Turning Tools with CAMFIX Exchangeable Shanks Carrying DCONMS Negative Triangular Inserts WF LF Right hand tool shown Designation DCONMS WF LF MIID(1) CP(2) DCP(3) C6 DTGNR/L-45065-22 63.00 45.00 65.00 TN.. 22 70 1 RTT 443 SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 SR M5X5 DIN916 T-15/5 EZ 104 (1) Master insert identification (2) Coolant pressure (Bar) (3) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: TNMG-F3S (212) • TNMG-F3P (210) • TNMG-M3P (210) • TNMG-F3M (211) • TNMG-M3M (211) • TNMG-TF (213) • TNMG-GN (215) • TNMM-NR (215) • TNMG/TNGG-PP (214) • TNMA (215) LH 45° DSDNN 45° Lead Angle R-Clamp HF H External Turning Tools Carrying ISO Negative SNMG Inserts WF B LF Designation H HF B LF LH WF MIID(1) DSDNN 2525M-12 25.0 25.0 25.0 150.00 38.0 12.80 SNMG 1204 DSDNN 2525M-15 25.0 25.0 25.0 150.00 42.0 12.50 SNMG 1506 DSDNN 3232P-19 32.0 32.0 32.0 170.00 44.0 16.00 SNMG 1906 (1) Master insert identification For inserts, see pages: SNMG-F3S (219) • SNMG-R3M (219) • SNMG-R3P (217) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMM-NR (225) • SNMG-PP (220) • SNMG-VL (219) • SNMG-EM-M/R (221) • SNMM-NM (224) • SNMM-H3P (223) • SNMM-H4P (224) • SNMA (222) Spare Parts Designation DSDNN 2525M-12 RST 443 RST 443R SET* SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 T-15/5 DSDNN 2525M-15 RST 54 SR 10402265 LCGR-5 SR 10402267 KSP 5 HW 4.0 DSDNN 3232P-19 RST 634 SR 10402266 LCGR-6 SR 10402267 KSP 5 HW 4.0 * Optional, to be ordered separately 50 ISCAR
