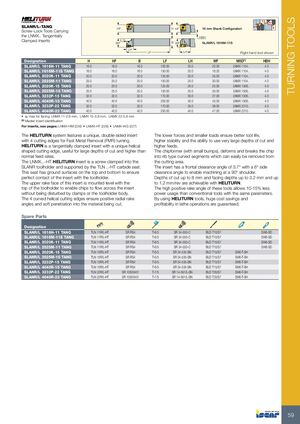

TURNING TOOLS SLANR/L-TANG HF H HF 16 mm Shank Configuration 93º Screw-Lock Tools Carrying the LNMX.. Tangentially HBH Clamped Inserts 3.7° B WF SLANR/L 1616M-11S WF LH LF LH Right hand tool shown Designation H HF B LF LH WF MIID(1) HBH SLANR/L 1616H-11 TANG 16.0 16.0 16.0 100.00 20.0 20.00 LNMX 1104.. 4.0 SLANR/L 1616M-11S TANG 16.0 16.0 16.0 150.00 20.0 16.20 LNMX 1104.. 4.0 SLANR/L 2020K-11 TANG 20.0 20.0 20.0 125.00 20.0 25.00 LNMX 1104.. 4.0 SLANR/L 2525M-11 TANG 25.0 25.0 25.0 150.00 25.0 30.00 LNMX 1104.. 4.0 SLANR/L 2020K-15 TANG 20.0 20.0 20.0 125.00 25.0 25.00 LNMX 1506.. 4.0 SLANR/L 2525M-15 TANG 25.0 25.0 25.0 150.00 25.0 30.00 LNMX 1506.. 4.0 SLANR/L 3232P-15 TANG 32.0 32.0 32.0 170.00 35.0 37.00 LNMX 1506.. 4.0 SLANR/L 4040R-15 TANG 40.0 40.0 40.0 200.00 35.0 45.00 LNMX 1506.. 4.0 SLANR/L 3232P-22 TANG 32.0 32.0 32.0 170.00 35.0 38.00 LNMX 2210.. 4.0 SLANR/L 4040R-22 TANG 40.0 40.0 40.0 200.00 40.0 47.00 LNMX 2210.. 4.0 • ap max for facing: LNMX 11-2.8 mm, LNMX 15-3.8 mm, LNMX 22-5.8 mm (1) Master insert identification For inserts, see pages: LNMX-HM (226) • LNMX-HT (226) • LNMX-WG (227) The HELITURN system features a unique, double-sided insert The lower forces and smaller loads ensure better tool life, with 4 cutting edges for Fast Metal Removal (FMR) turning� higher stability and the ability to use very large depths of cut and HELITURN is a tangentially clamped insert with a unique helical higher feeds� shaped cutting edge, useful for large depths of cut and higher than The chipformer (with small bumps), deforms and breaks the chip normal feed rates� into rib type curved segments which can easily be removed from The LNMX���-HT HELITURN insert is a screw clamped into the the cutting area� SLANR toolholder and supported by the TLN ��-HT carbide seat� The insert has a frontal clearance angle of 3�7° with a 6° side This seat has ground surfaces on the top and bottom to ensure clearance angle to enable machining at a 90° shoulder� perfect contact of the insert with the toolholder� Depths of cut up to 8 mm and facing depths up to 3�2 mm and up The upper rake face of this insert is mounted level with the to 1�2 mm/rev are achievable with HELITURN� top of the toolholder to enable chips to flow across the insert The high positive rake angle of these tools allows 10-15% less without being disturbed by clamps or the toolholder body� power usage than conventional tools with the same parameters� The 4 curved helical cutting edges ensure positive radial rake By using HELITURN tools, huge cost savings and angles and soft penetration into the material being cut� profitability in lathe operations are guaranteed� Spare Parts Designation SLANR/L 1616H-11 TANG TLN 11R/L-HT SR RS4 T-6/5 SR 34-550-C BLD T10/S7 SW6-SD SLANR/L 1616M-11S TANG TLN 11R/L-HT SR RS4 T-6/5 SR 34-550-C BLD T10/S7 SW6-SD SLANR/L 2020K-11 TANG TLN 11R/L-HT SR RS4 T-6/5 SR 34-550-C BLD T10/S7 SW6-SD SLANR/L 2525M-11 TANG TLN 11R/L-HT SR RS4 T-6/5 SR 34-550-C BLD T10/S7 SW6-SD SLANR/L 2020K-15 TANG TLN 15R/L-HT SR RS4 T-6/5 SR 34-535-SN BLD T15/S7 SW6-T-SH SLANR/L 2525M-15 TANG TLN 15R/L-HT SR RS4 T-6/5 SR 34-535-SN BLD T15/S7 SW6-T-SH SLANR/L 3232P-15 TANG TLN 15R/L-HT SR RS4 T-6/5 SR 34-535-SN BLD T15/S7 SW6-T-SH SLANR/L 4040R-15 TANG TLN 15R/L-HT SR RS4 T-6/5 SR 34-535-SN BLD T15/S7 SW6-T-SH SLANR/L 3232P-22 TANG TLN 22R/L-HT SR 10500401 T-7/5 SR 14-591/L-SN BLD T20/S7 SW6-T-SH SLANR/L 4040R-22 TANG TLN 22R/L-HT SR 10500401 T-7/5 SR 14-591/L-SN BLD T20/S7 SW6-T-SH 59
