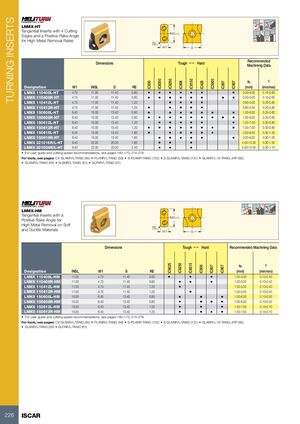

TURNING INSERTS 91° LNMX-HT 93° 93º Tangential Inserts with 4 Cutting INSL=L Edges and a Positive Rake Angle 93º 75 º for High Metal Removal Rates RE W1 S Recommended Dimensions Tough 1 Hard Machining Data ap f IC8350 IC8250 IC8150 IC5005 IC830 IC908 IC428 IC807 IC907 Designation W1 INSL S RE (mm) (mm/rev) LNMX 110408L-HT 4.75 11.00 11.40 0.80 • • • • • • • 0.50-5.00 0.15-0.60 LNMX 110408R-HT 4.75 11.00 11.40 0.80 • • • • • • • • 0.50-5.00 0.15-0.60 LNMX 110412L-HT 4.75 11.00 11.40 1.20 • • • • 0.80-5.00 0.20-0.80 LNMX 110412R-HT 4.75 11.00 11.40 1.20 • • • • • 0.80-5.00 0.20-0.80 LNMX 150608L-HT 6.40 15.00 13.40 0.80 • • • • • • • 1.00-6.00 0.25-0.60 LNMX 150608R-HT 6.40 15.00 13.40 0.80 • • • • • • • • • 1.00-6.00 0.25-0.60 LNMX 150612L-HT 6.40 15.00 13.40 1.20 • • • • • • 1.50-7.00 0.30-0.80 LNMX 150612R-HT 6.40 15.00 13.40 1.20 • • • • • • • • 1.50-7.00 0.30-0.80 LNMX 150616L-HT 6.40 15.00 13.40 1.60 • • • • • • 2.00-8.00 0.30-1.00 LNMX 150616R-HT 6.40 15.00 13.40 1.60 • • • • • • 2.00-8.00 0.30-1.00 LNMX 221016R/L-HT 9.40 22.00 20.00 1.60 • • • 4.00-15.00 0.30-1.00 LNMX 221024R/L-HT 9.40 22.00 20.00 2.40 • • • 5.00-15.00 0.30-1.10 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: C#-SLANR/L-TANG (60) • PLANR/L-TANG (58) • S-PLANR-TANG (132) • S-SLANR/L-TANG (131) • SLANR/L-15-TANG-JHP (60) • SLANR/L-TANG (59) • SLBNR/L-TANG (61) • SLFNR/L-TANG (61) 91° LNMX-HM 93° 93º 93º Tangential Inserts with a INSL=L Positive Rake Angle for High Metal Removal on Soft RE and Ductile Materials W1 S Dimensions Tough 1 Hard Recommended Machining Data ap f IC6025 IC8250 IC6015 IC806 IC807 IC907 Designation INSL W1 S RE (mm) (mm/rev) LNMX 110408L-HM 11.00 4.75 11.40 0.80 • • • 1.00-5.00 0.10-0.40 LNMX 110408R-HM 11.00 4.75 11.40 0.80 • • • 1.00-5.00 0.10-0.40 LNMX 110412L-HM 11.00 4.75 11.40 1.20 • 1.00-5.00 0.10-0.40 LNMX 110412R-HM 11.00 4.75 11.40 1.20 • 1.00-5.00 0.10-0.40 LNMX 150608L-HM 15.00 6.40 13.40 0.80 • • • 1.00-6.00 0.10-0.50 LNMX 150608R-HM 15.00 6.40 13.40 0.80 • • • • 1.00-6.00 0.10-0.50 LNMX 150612L-HM 15.00 6.40 13.40 1.20 • • • 1.50-7.00 0.15-0.70 LNMX 150612R-HM 15.00 6.40 13.40 1.20 • • • • 1.50-7.00 0.15-0.70 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: C#-SLANR/L-TANG (60) • PLANR/L-TANG (58) • S-PLANR-TANG (132) • S-SLANR/L-TANG (131) • SLANR/L-15-TANG-JHP (60) • SLANR/L-TANG (59) • SLFNR/L-TANG (61) 226 ISCAR
