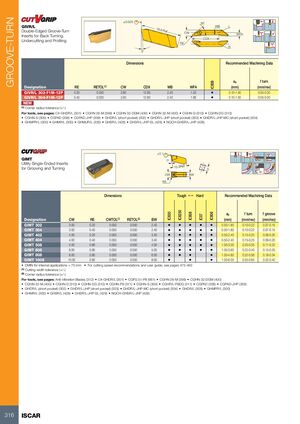

GROOVE-TURN ±0.025 35˚ GIVR/L 18.9 WB L Double-Edged Groove-Turn Ref. CW WFA Inserts for Back Turning, CDX Undercutting and Profiling RE R 5˚ Dimensions Recommended Machining Data ap f turn IC808 Designation RE RETOL(1) CW CDX WB WFA (mm) (mm/rev) GIVR/L 302-F1M-12P 0.20 0.030 2.80 12.80 2.40 1.53 • 0.10-1.50 0.05-0.30 GIVR/L 304-F1M-12P 0.40 0.030 2.93 12.80 2.40 1.66 • 0.10-1.50 0.05-0.30 NEW (1) Corner radius tolerance (+/-) For tools, see pages: C#-GHDR/L (301) • CGHN 26-M (399) • CGHN 32-DGM (400) • CGHN 32-M (400) • CGHN-D (310) • CGHN-DG (310) • CGHN-S (309) • CGPAD (308) • CGPAD-JHP (309) • GHDR/L (short pocket) (302) • GHDR/L-JHP (short pocket) (303) • GHDR/L-JHP-MC (short pocket) (304) • GHMPR/L (300) • GHMR/L (300) • GHMUR/L (335) • GHSR/L (428) • GHSR/L-JHP-SL (429) • NQCH-GHSR/L-JHP (428) ±0.1 GIMT 7º Utility Single-Ended Inserts for Grooving and Turning 15.3Ref 5 CW BW RE Dimensions Tough 1 Hard Recommended Machining Data IC8250 ap f turn f groove IC830 IC808 IC806 IC07 Designation CW RE CWTOL(1) RETOL(2) BW (mm) (mm/rev) (mm/rev) GIMT 302 3.00 0.20 0.050 0.050 2.40 • • • • • 0.50-1.80 0.10-0.22 0.07-0.15 GIMT 304 3.00 0.40 0.050 0.050 2.40 • • • • • 0.50-1.80 0.10-0.22 0.07-0.15 GIMT 402 4.00 0.20 0.050 0.050 3.40 • • • • • 0.50-2.40 0.15-0.25 0.09-0.20 GIMT 404 4.00 0.40 0.050 0.050 3.40 • • • • • 0.50-2.40 0.15-0.25 0.09-0.20 GIMT 508 5.00 0.80 0.050 0.050 4.00 • • • • • 1.00-3.00 0.20-0.35 0.11-0.22 GIMT 608 6.00 0.80 0.050 0.050 5.00 • • • • • 1.00-3.60 0.22-0.40 0.13-0.25 GIMT 808 8.00 0.80 0.050 0.050 6.00 • • • • 1.00-4.80 0.32-0.56 0.18-0.34 GIMT 1008 10.00 0.80 0.050 0.050 8.00 • • • 1.00-6.00 0.35-0.65 0.22-0.40 • DMIN for internal applications = 70 mm • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: Anti-Vibration Blades (312) • C#-GHDR/L (301) • CGFG 51-P8 (661) • CGHN 26-M (399) • CGHN 32-DGM (400) • CGHN 32-M (400) • CGHN-D (310) • CGHN-DG (310) • CGHN-P8 (311) • CGHN-S (309) • CGHR/L-P8DG (311) • CGPAD (308) • CGPAD-JHP (309) • GHDR/L (short pocket) (302) • GHDR/L-JHP (short pocket) (303) • GHDR/L-JHP-MC (short pocket) (304) • GHGR/L (305) • GHMPR/L (300) • GHMR/L (300) • GHSR/L (428) • GHSR/L-JHP-SL (429) • NQCH-GHSR/L-JHP (428) 316 ISCAR
