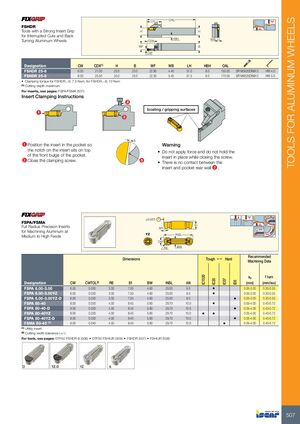

TOOLS FOR ALUMINUM WHEELS LH OAL FSHDR Tools with a Strong Insert Grip H H for Interrupted Cuts and Back HBH WB Turning Aluminum Wheels CDX WF B CW Designation CW CDX(1) H B WF WB LH HBH OAL FSHDR 25-6 6.00 21.00 25.0 25.0 22.80 4.40 51.0 8.0 150.00 SR M5X20DIN912 HW 4.0 FSHDR 25-8 8.00 25.50 25.0 25.0 22.30 5.40 51.5 8.0 170.00 SR M6X25DIN912 HW 5.0 • Clamping torque for FSHDR..-6: 7.5 Nxm, for FSHDR..-8: 10 Nxm (1) Cutting depth maximum For inserts, see pages: FSPA/FSMA (507) Insert Clamping Instructions 2 locating / gripping surfaces 1 3 1 Position the insert in the pocket so Warning the notch on the insert sits on top • Do not apply force and do not hold the of the front bulge of the pocket� insert in place while closing the screw� 2 Close the clamping screw� 3 • There is no contact between the insert and pocket rear wall 3 � ±0.025 FSPA/FSMA S1 Full Radius Precision Inserts AN for Machining Aluminum at YZ lNSL Medium to High Feeds CW RE BW Recommended Dimensions Tough 1 Hard Machining Data ap f turn IC1520 IC20 IC07 ID5 Designation CW CWTOL(2) RE S1 BW INSL AN (mm) (mm/rev) FSPA 6.00-3.00 6.00 0.020 3.00 7.50 4.60 25.00 9.0 • 0.05-3.00 0.30-0.55 FSPA 6.00-3.00YZ 6.00 0.020 3.00 7.50 4.60 25.00 9.0 • 0.05-3.00 0.30-0.55 FSPA 6.00-3.00YZ-D 6.00 0.020 3.00 7.50 4.60 25.00 9.0 • 0.05-3.00 0.30-0.55 FSPA 80-40 8.00 0.020 4.00 8.40 5.60 29.70 10.0 • 0.05-4.00 0.40-0.72 FSPA 80-40-D 8.00 0.020 4.00 8.40 5.60 29.70 10.0 • 0.05-4.00 0.40-0.72 FSPA 80-40YZ 8.00 0.020 4.00 8.40 5.60 29.70 10.0 • • 0.05-4.00 0.40-0.72 FSPA 80-40YZ-D 8.00 0.020 4.00 8.40 5.60 29.70 10.0 • 0.05-4.00 0.40-0.72 FSMA 80-40 (1) 8.00 0.040 4.00 8.40 5.60 29.70 10.0 • 0.05-4.00 0.40-0.72 (1) Utility insert (2) Cutting width tolerance (+/-) For tools, see pages: DTF50 FSHDR-8 (508) • DTF50 FSHIUR (509) • FSHDR (507) • FSHIUR (506) 507
