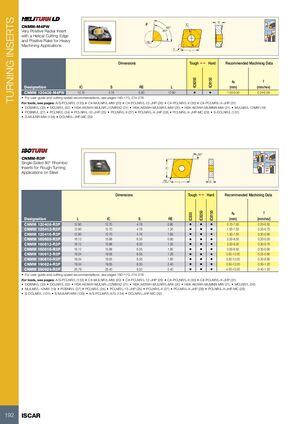

TURNING INSERTS S F IC CNMM-M4PW 88º 95º Very Positive Radial Insert 80º 95º with a Helical Cutting Edge and Positive Rake for Heavy RE 95º Machining Applications F L Dimensions Tough 1 Hard Recommended Machining Data IC8250 IC8150 ap f Designation IC S RE L (mm) (mm/rev) CNMM 120408-M4PW 12.70 4.76 0.80 12.90 • • 1.50-5.00 0.24-0.59 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) • DCLNR/L-JHP-MC (32) 80° 95º CNMM-R3P 95º 95º Single-Sided 80° Rhombic 75° Inserts for Rough Turning IC 75º Applications on Steel RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC830 Designation L IC S RE (mm) (mm/rev) CNMM 120408-R3P 12.90 12.70 4.76 0.80 • • • 0.70-7.50 0.20-0.55 CNMM 120412-R3P 12.90 12.70 4.76 1.20 • • • 1.00-7.50 0.25-0.70 CNMM 120416-R3P 12.90 12.70 4.76 1.60 • • • 1.50-7.50 0.30-0.90 CNMM 160608-R3P 16.12 15.88 6.35 0.80 • • • 2.00-9.50 0.20-0.55 CNMM 160612-R3P 16.12 15.88 6.35 1.20 • • • 2.00-9.50 0.30-0.70 CNMM 160616-R3P 16.12 15.88 6.35 1.60 • • • 2.00-9.50 0.30-0.90 CNMM 190612-R3P 19.34 19.05 6.35 1.20 • • • 3.00-12.00 0.25-0.80 CNMM 190616-R3P 19.34 19.05 6.35 1.60 • • • 3.50-12.00 0.30-0.90 CNMM 190624-R3P 19.34 19.05 6.35 2.40 • • • 3.50-12.00 0.30-1.20 CNMM 250924-R3P 25.79 25.40 9.52 2.40 • • • 4.00-15.00 0.40-1.20 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MCLNR/L (26) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) • A/S-PCLNR/L-X/G (134) • DCLNR/L-JHP-MC (32) 192 ISCAR
