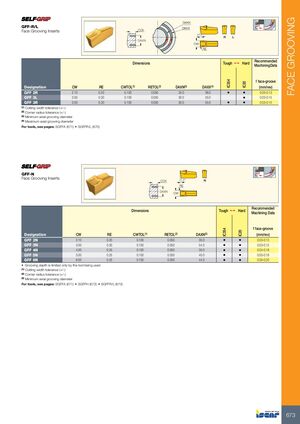

FACE GROOVING DAXN GFF-R/L DAXX Face Grooving Inserts CDX 7° R L DAXN CW RE Recommended Dimensions Tough 1 Hard Machining Data f face-groove IC354 IC20 Designation CW RE CWTOL(1) RETOL(2) DAXN(3) DAXX(4) (mm/rev) GFF 2R 2.10 0.20 0.100 0.050 25.0 36.0 • • 0.03-0.13 GFF 3L 3.00 0.30 0.100 0.050 30.0 55.0 • 0.03-0.15 GFF 3R 3.00 0.30 0.100 0.050 30.0 55.0 • • 0.03-0.15 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum axial grooving diameter (4) Maximum axial grooving diameter For tools, see pages: SGFFA (671) • SGFFR/L (670) GFF-N Face Grooving Inserts 7° N CDX RE DAXN CW Recommended Dimensions Tough 1 Hard Machining Data f face-groove IC354 IC20 Designation CW RE CWTOL(1) RETOL(2) DAXN(3) (mm/rev) GFF 2N 2.10 0.20 0.100 0.050 35.0 • • 0.03-0.13 GFF 3N 3.00 0.30 0.100 0.050 54.0 • • 0.03-0.15 GFF 4N 4.00 0.25 0.100 0.050 35.0 • • 0.04-0.18 GFF 5N 5.00 0.25 0.100 0.050 40.0 • • 0.05-0.18 GFF 6N 6.00 0.25 0.100 0.050 44.0 • • 0.05-0.20 • Grooving depth is limited only by the tool being used (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum axial grooving diameter For tools, see pages: SGFFA (671) • SGFFH (672) • SGFFR/L (670) 673
