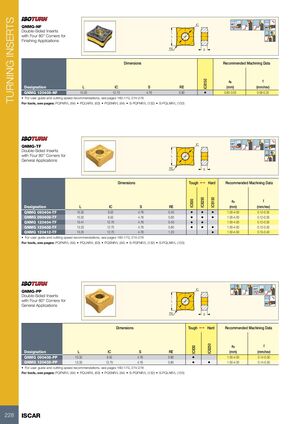

TURNING INSERTS IC 95º QNMG-NF 95° 95° 95º Double-Sided Inserts 45º with Four 80° Corners for L 45º Finishing Applications RE S Dimensions Recommended Machining Data ap f IC8150 Designation L IC S RE (mm) (mm/rev) QNMG 120408-NF 13.33 12.70 4.76 0.80 • 0.80-3.00 0.08-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: PQFNR/L (64) • PQLNR/L (63) • PQSNR/L (64) • S-PQFNR/L (132) • S-PQLNR/L (133) IC 95º QNMG-TF 95° 95° 95º Double-Sided Inserts 45º with Four 80° Corners for L 45º General Applications RE S Dimensions Tough 1 Hard Recommended Machining Data IC8250 IC8150 ap f IC830 Designation L IC S RE (mm) (mm/rev) QNMG 090404-TF 10.32 9.52 4.76 0.40 • • • 1.00-4.00 0.12-0.35 QNMG 090408-TF 10.32 9.52 4.76 0.80 • • • 1.00-4.00 0.12-0.35 QNMG 120404-TF 13.41 12.70 4.76 0.40 • • 1.00-4.00 0.12-0.35 QNMG 120408-TF 13.33 12.70 4.76 0.80 • • • 1.00-4.00 0.12-0.35 QNMG 120412-TF 13.25 12.70 4.76 1.20 • 1.50-4.50 0.15-0.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: PQFNR/L (64) • PQLNR/L (63) • PQSNR/L (64) • S-PQFNR/L (132) • S-PQLNR/L (133) 45º IC 45º 95º QNMG-PP 95° 95° Double-Sided Inserts with Four 80° Corners for L 95º General Applications RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC830 Designation L IC S RE (mm) (mm/rev) QNMG 090408-PP 10.32 9.52 4.76 0.80 • 1.00-4.00 0.14-0.30 QNMG 120408-PP 13.33 12.70 4.76 0.80 • • 1.00-4.00 0.14-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: PQFNR/L (64) • PQLNR/L (63) • PQSNR/L (64) • S-PQFNR/L (132) • S-PQLNR/L (133) 228 ISCAR
