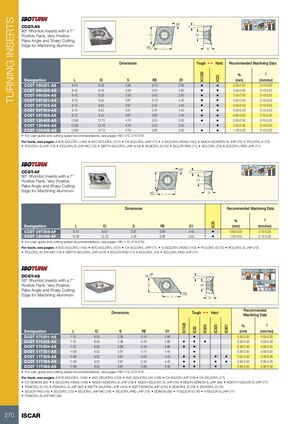

TURNING INSERTS 95º 99° 80˚ CCGT-AS 7˚ 95º 95º 91° 80° Rhombic Inserts with a 7° Positive Flank, Very Positive IC D1 Rake Angle and Sharp Cutting Edge for Machining Aluminum RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC1520 IC20 Designation L IC S RE D1 (mm) (mm/rev) CCGT 060201-AS 6.40 6.35 2.38 0.10 2.80 • • 0.50-2.00 0.10-0.20 CCGT 060202-AS 6.40 6.35 2.38 0.20 2.80 • • 0.50-2.00 0.10-0.20 CCGT 060204-AS 6.40 6.35 2.38 0.40 2.80 • • 0.50-2.00 0.10-0.25 CCGT 09T301-AS 9.70 9.52 3.97 0.10 4.40 • • 0.50-2.50 0.10-0.25 CCGT 09T302-AS 9.70 9.52 3.97 0.20 4.40 • • 0.50-2.50 0.10-0.25 CCGT 09T304-AS 9.70 9.52 3.97 0.40 4.40 • • 0.50-2.50 0.10-0.25 CCGT 09T308-AS 9.70 9.52 3.97 0.80 4.40 • • 0.80-3.00 0.10-0.30 CCGT 120402-AS 12.90 12.70 4.76 0.20 5.50 • • 0.50-2.50 0.10-0.25 CCGT 120404-AS 12.90 12.70 4.76 0.40 5.50 • 0.50-2.50 0.10-0.25 CCGT 120408-AS 12.90 12.70 4.76 0.80 5.50 • • 1.00-3.50 0.10-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278. For tools, see pages: A/E/S-SCLCR/L (146) • AVC-SCLCR/L (121) • C#-SCLCR/L-JHP (71) • E-SCLCR/L-HEAD (145) • NQCH-SCACR/L-S-JHP (72) • PCLCR/L-S (72) • PCLCR/L-S-JHP (73) • PCLCR/L-S-JHP-MC (73) • SBTT#-SCLCR/L-JHP (418) • SCACR/L-S (72) • SCLCR-PAD (71) • SCLCR/L (70) • SCLCR/L-PAD-JHP (71) 95º 99° 80˚ CCGT-AF 7˚ 95º 95º 91° 80° Rhombic Inserts with a 7° Positive Flank, Very Positive IC D1 Rake Angle and Sharp Cutting Edge for Machining Aluminum RE S L Dimensions Recommended Machining Data ap f IC20 Designation L IC S RE D1 (mm) (mm/rev) CCGT 09T308-AF 9.70 9.52 3.97 0.80 4.40 • 0.80-3.00 0.15-0.25 CCGT 120408-AF 12.90 12.70 4.76 0.80 5.50 • 1.00-3.50 0.15-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278. For tools, see pages: A/E/S-SCLCR/L (146) • AVC-SCLCR/L (121) • C#-SCLCR/L-JHP (71) • E-SCLCR/L-HEAD (145) • PCLCR/L-S (72) • PCLCR/L-S-JHP (73) • PCLCR/L-S-JHP-MC (73) • SBTT#-SCLCR/L-JHP (418) • SCLCR-PAD (71) • SCLCR/L (70) • SCLCR/L-PAD-JHP (71) 29° 27° MAX MAX 107.5° DCGT-AS 55˚ 7˚ 16º 91° 93° 55° Rhombic Inserts with a 7° MAX 60° 93º-95º MAX Positive Flank, Very Positive IC D1 62.5º Rake Angle and Sharp Cutting 30º MAX RE Edge for Machining Aluminum L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC1520 IC920 IC320 IC907 IC20 Designation L IC S RE D1 (mm) (mm/rev) DCGT 070201-AS 7.75 6.35 2.38 0.10 2.80 • 0.50-2.00 0.03-0.20 DCGT 070202-AS 7.75 6.35 2.38 0.20 2.80 • • • 0.50-2.00 0.05-0.20 DCGT 070204-AS 7.75 6.35 2.38 0.40 2.80 • • 0.50-2.50 0.05-0.25 DCGT 11T301-AS 11.60 9.52 3.97 0.10 4.40 • 0.50-2.50 0.05-0.25 DCGT 11T302-AS 11.60 9.52 3.97 0.20 4.40 • • • • 0.50-2.50 0.05-0.26 DCGT 11T304-AS 11.60 9.52 3.97 0.40 4.40 • • • • 0.50-2.50 0.05-0.25 DCGT 11T308-AS 11.60 9.52 3.97 0.80 4.40 • • • 0.80-3.00 0.08-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SDUCR/L (148) • AVC-SDUCR/L (122) • AVC-SDUCR/L-VH (128) • C#-SDJCR-JHP (78) • C#-SDJCR/L (77) • C#-SDNCN (84) • E-SDUCR/L-HEAD (148) • NQCH-SDACR/L-S-JHP (79) • NQCH-SDJCR/L-S-JHP (76) • NQCH-SDNCN-S-JHP (84) • NQCH-Y-SDJCR-S-JHP (77) • PDACR/L-S (74) • PDACR/L-S-JHP (82) • SBTT#-SDJCR/L-JHP (415) • SBTT-SDNCN-JHP (415) • SDACR/L-S (79) • SDHCR/L-S (79) • SDJCR-PAD (78) • SDJCR/L (75) • SDJCR/L-JHP-MC (76) • SDJCR/L-PAD-JHP (78) • SDNCN (83) • Y-SDJCR-S (76) • Y-SDJCR-S-JHP (77) • PDACR/L-S-JHP-MC (82) 270 ISCAR
