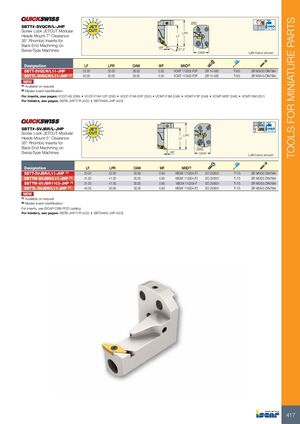

TOOLS FOR MINIATURE PARTS 117.5º Ø45 SBTT#-SVQCR/L-JHP Bar Max Screw Lock JETCUT Modular LPR Heads Mount 7° Clearance LF 35° Rhombic Inserts for Back-End Machining on WF Swiss-Type Machines 27.5˚ OAW Left-hand shown Designation LF LPR OAW WF MIID(2) SBTT-SVQCR/L11-JHP 23.00 33.00 29.00 0.50 VCMT 110302-F3P SR 14-560 T-8/5 SR M5X30 DIN7984 SBTTL-SVQCR/L11-JHP (1) 40.00 50.00 29.00 0.50 VCMT 110302-F3P SR 14-560 T-8/5 SR M5X45 DIN7984 NEW (1) Available on request (2) Master insert identification For inserts, see pages: VCGT-AS (269) • VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-SM (251) For holders, see pages: SBTB-JHP-T/R (422) • SBTS##S-JHP (423) 50° MAX SBTT#-SVJBR/L-JHP 93° Bar Max Screw Lock JETCUT Modular LPR Heads Mount 5° Clearance LF 35° Rhombic Inserts for Back-End Machining on Ø45 Swiss-Type Machines WF OAW Left-hand shown Designation LF LPR OAW WF MIID(2) SBTT-SVJBR/L11-JHP (1) 23.00 33.00 30.00 0.80 VBGW 110304-F2 SO 250651 T-7/5 SR M5X30 DIN7984 SBTTM-SVJBR/L11-JHP (1) 31.00 41.00 30.00 0.80 VBGW 110304-F2 SO 250651 T-7/5 SR M5X35 DIN7984 SBTTM-SVJBR1102-JHP (1) 31.00 41.00 30.00 0.80 VBGW 110204-F SO 250651 T-7/5 SR M5X35 DIN7984 SBTTL-SVJBR/L11-JHP (1) 40.00 50.00 30.00 0.80 VBGW 110304-F2 SO 250651 T-7/5 SR M5X45 DIN7984 NEW (1) Available on request (2) Master insert identification For inserts, see ISCAR CBN PCD catalog For holders, see pages: SBTB-JHP-T/R (422) • SBTS##S-JHP (423) 417
