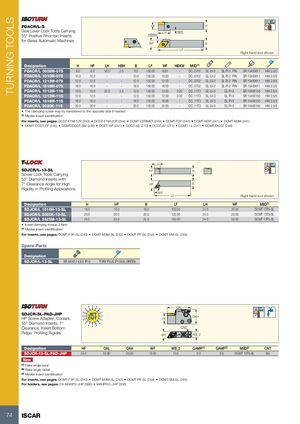

Токарные инструменты Iscar (часть 1) 2026 - страница 76

TURNING TOOLS 29° MAX PDACR/L-S HF H 91° Side Lever Lock Tools Carrying LH HBH HBKW 55° Positive Rhombic Inserts for Swiss Automatic Machines WF B LF Right hand tool shown Designation H HF LH HBH B LF WF HBKW MIID(1) PDACR/L 0808M-07S 8.0 8.0 16.0 2.0 8.0 150.00 8.00 - DC..0702 SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 PDACR/L 1010M-07S 10.0 10.0 - - 10.0 150.00 10.00 - DC..0702 SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 PDACR/L 1212M-07S 12.0 12.0 - - 12.0 150.00 12.00 - DC..0702 SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 PDACR/L 1616M-07S 16.0 16.0 - - 16.0 150.00 16.00 - DC..0702 SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 PDACR/L 1012M-11S 10.0 10.0 22.0 2.5 12.0 150.00 12.00 2.00 DC..11T3 SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 PDACR/L 1212M-11S 12.0 12.0 - - 12.0 150.00 12.00 2.00 DC..11T3 SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 PDACR/L 1616M-11S 16.0 16.0 - - 16.0 150.00 16.00 - DC..11T3 SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 PDACR/L 2020K-11S 20.0 20.0 - - 20.0 125.00 20.00 - DC..11T3 SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 • The clamping screw may by transferred to the opposite side if needed (1) Master insert identification For inserts, see pages: DCGT-F1M-12P (243) • DCGT-F1M-20P (244) • DCMT-CERMET (243) • DCMT-F3P (240) • DCMT-M3P (241) • DCMT-M3M (241) • DCMT/DCGT-PF (245) • DCMT/DCGT-SM (246) • DCET-WF (247) • DCGT-AS (270) • DCGT-AF (271) • DCMT-14 (247) • DCMT/DCGT (246) LH 27° MAX SDJCR/L-13-SL HF H 93° Screw Lock Tools Carrying 55° Diamond Inserts with 7° Clearance Angle for High WF B Rigidity in Profiling Applications 93° LF Right hand tool shown Designation H HF B LF LH WF MIID(1) SDJCR/L 1616H-13-SL 16.0 16.0 16.0 100.00 24.0 20.00 DCMT 13T5-SL SDJCR/L 2020K-13-SL 20.0 20.0 20.0 125.00 24.0 25.00 DCMT 13T5-SL SDJCR/L 2525M-13-SL 25.0 25.0 25.0 150.00 24.0 32.00 DCMT 13T5-SL • Insert clamping torque 3 Nxm (1) Master insert identification For inserts, see pages: DCMT-F3P-SL (240) • DCMT-M3M-SL (242) • DCMT-PF-SL (244) • DCMT-SM-SL (245) Spare Parts Designation SDJCR/L-13-SL SR M4X0.7-L9.6 IP15 TORX PLUS IP15X45 GREEN OAL 27° MAX SDJCR-SL-PAD-JHP 93° OAH HP Screw Adapter, Coolant, HF 55° Diamond Inserts, 7° Clearance. Insert Bottom CNT Ridge, Profiling Rigidity WF WB_2 Designation HF OAL OAH WF WB_2 GAMP(1) GAMF(2) MIID(3) CNT SDJCR-13-SL-PAD-JHP 24.0 52.80 33.00 15.00 10.0 0.0 0.0 DCMT 13T5-SL M4 New (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: DCMT-F3P-SL (240) • DCMT-M3M-SL (242) • DCMT-PF-SL (244) • DCMT-SM-SL (245) For holders, see pages: C#-MAHPD-JHP (698) • MAHPR/L-JHP (308) 74 ISCAR
