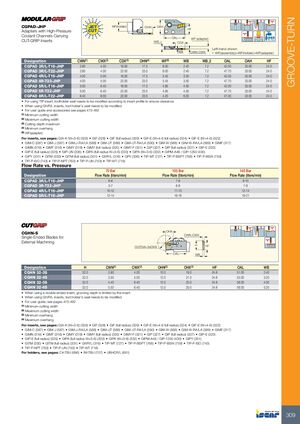

GROOVE-TURN CGPAD-JHP WF(holder) OHN OAH HF Adapters with High-Pressure Coolant Channels Carrying OAL WF (adapter) CUT-GRIP Inserts WB_2 CDX Bar Max Left-hand shown WB CWN-CWX • WF(assembly)=WF(holder)+WF(adapter) Designation CWN(1) CWX(2) CDX(3) OHN(4) WF(5) WB WB_2 OAL OAH HF CGPAD 3R/L-T16-JHP 2.80 4.00 16.00 17.3 6.00 2.40 7.2 42.00 33.00 24.0 CGPAD 3R/L-T22-JHP 2.80 4.00 22.00 23.0 6.00 2.40 7.2 47.70 33.00 24.0 CGPAD 4R/L-T16-JHP 4.00 5.00 16.00 17.3 5.45 3.50 7.2 42.00 33.00 24.0 CGPAD 4R-T22-JHP 4.00 5.00 22.00 23.0 5.45 3.50 7.2 47.70 33.00 24.0 CGPAD 5R/L-T16-JHP 5.00 6.40 16.00 17.3 4.95 4.50 7.2 42.00 33.00 24.0 CGPAD 5R-T22-JHP 5.00 6.40 22.00 23.0 4.95 4.50 7.2 47.70 33.00 24.0 CGPAD 8R/L-T22-JHP 6.40 8.00 22.00 23.0 4.20 6.00 7.2 47.00 33.00 24.0 • For using TIP insert, toolholder seat needs to be modified according to insert profile to ensure clearance • When using GIVR/L inserts, tool holder’s seat needs to be modified • For user guide and accessories see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Minimum overhang (5) WF(adapter) For inserts, see pages: GIA-K (W=3-6) (329) • GIF (328) • GIF (full radius) (329) • GIF-E (W=4-6 full radius) (324) • GIF-E (W=4-6) (322) • GIM-C (587) • GIM-J (587) • GIM-J-RA/LA (588) • GIM-UT (589) • GIM-UT-RA/LA (590) • GIM-W (588) • GIM-W-RA/LA (589) • GIMF (317) • GIMN (319) • GIMT (316) • GIMY (318) • GIMY (full radius) (320) • GIMY-F (321) • GIP (327) • GIP (full radius) (327) • GIP-E (323) • GIP-E (full radius) (325) • GIP-UN (335) • GIPA (full radius W=3-6) (333) • GIPA (W=3-6) (332) • GIPM-A46 / GIP-1250 (430) • GIPY (331) • GITM (330) • GITM (full radius) (331) • GIVR/L (316) • GPV (336) • TIP-MT (727) • TIP-P-BSPT (768) • TIP-P-BSW (759) • TIP-P-ISO (743) • TIP-P-NPT (763) • TIP-P-UN (753) • TIP-WT (718) Flow Rate vs. Pressure 70 Bar 100 Bar 140 Bar Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min) CGPAD 3R/L-T16-JHP 6-8 7-9 8-10 CGPAD 3R-T22-JHP 5-7 6-8 7-9 CGPAD 4R/L-T16-JHP 10-12 11-13 12-14 CGPAD 5R/L-T16-JHP 12-14 16-18 19-21 OHX CGHN-S CWN-CWX Single-Ended Blades for External Machining CUTDIA=2xOHX H HF OAL WB Designation H CWN(1) CWX(2) OHN(3) OHX(4) HF OAL WB CGHN 32-3S 32.0 2.80 4.00 10.0 19.0 24.8 51.00 2.40 CGHN 32-4S 32.0 3.50 5.00 12.0 21.0 24.8 53.00 3.20 CGHN 32-5S 32.0 4.40 6.40 12.0 25.0 24.8 56.00 4.00 CGHN 32-6S 32.0 5.50 6.40 12.0 25.0 24.8 56.00 5.20 • When using a double-ended insert, grooving depth is limited by the insert • When using GIVR/L inserts, tool holder’s seat needs to be modified • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Minimum overhang (4) Maximum overhang For inserts, see pages: GIA-K (W=3-6) (329) • GIF (328) • GIF (full radius) (329) • GIF-E (W=4-6 full radius) (324) • GIF-E (W=4-6) (322) • GIM-C (587) • GIM-J (587) • GIM-J-RA/LA (588) • GIM-UT (589) • GIM-UT-RA/LA (590) • GIM-W (588) • GIM-W-RA/LA (589) • GIMF (317) • GIMN (319) • GIMT (316) • GIMY (318) • GIMY (full radius) (320) • GIMY-F (321) • GIP (327) • GIP (full radius) (327) • GIP-E (323) • GIP-E (full radius) (325) • GIPA (full radius W=3-6) (333) • GIPA (W=3-6) (332) • GIPM-A46 / GIP-1250 (430) • GIPY (331) • GITM (330) • GITM (full radius) (331) • GIVR/L (316) • TIP-MT (727) • TIP-P-BSPT (768) • TIP-P-BSW (759) • TIP-P-ISO (743) • TIP-P-NPT (763) • TIP-P-UN (753) • TIP-WT (718) For holders, see pages: C#-TBU (696) • IM-TBU (707) • UBHCR/L (691) 309
