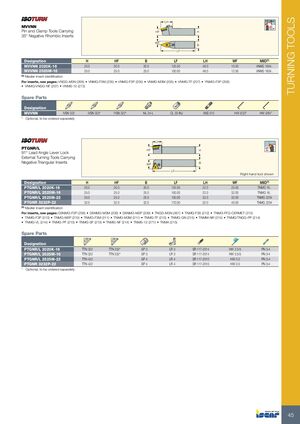

TURNING TOOLS LH 70°MAX MVVNN 72.5º Pin and Clamp Tools Carrying HF H 35° Negative Rhombic Inserts WF B LF Designation H HF B LF LH WF MIID(1) MVVNN 2020K-16 20.0 20.0 20.0 125.00 48.0 10.00 VNMG 1604.. MVVNN 2525M-16 25.0 25.0 25.0 150.00 48.0 12.50 VNMG 1604.. (1) Master insert identification For inserts, see pages: VNGG-M3N (268) • VNMG-F3M (205) • VNMG-F3P (205) • VNMG-M3M (205) • VNMG-TF (207) • YNMG-F3P (208) • VNMG/VNGG-NF (207) • VNMS-12 (272) Spare Parts Designation MVVNN IVSN 322 IVSN 323* IYSN 322* NL 34-L CL 30-INJ XNS 510 HW 5/32" HW 5/64" * Optional, to be ordered separately LH PTGNR/L HF H 91º 91° Lead Angle Lever Lock External Turning Tools Carrying Negative Triangular Inserts WF B LF Right hand tool shown Designation H HF B LF LH WF MIID(1) PTGNR/L 2020K-16 20.0 20.0 20.0 125.00 22.0 25.00 TNMG 16.. PTGNR/L 2525M-16 25.0 25.0 25.0 150.00 22.0 32.00 TNMG 16.. PTGNR/L 2525M-22 25.0 25.0 25.0 150.00 32.0 32.00 TNMG 2204 PTGNR 3232P-22 32.0 32.0 32.0 170.00 32.0 40.00 TNMG 2204 (1) Master insert identification For inserts, see pages: D6NMG-F3P (209) • D6NMG-M3M (209) • D6NMG-M3P (209) • TNGG-M3N (267) • TNMG-F3S (212) • TNMG-FFG-CERMET (212) • TNMG-F3P (210) • TNMG-M3P (210) • TNMG-F3M (211) • TNMG-M3M (211) • TNMG-TF (213) • TNMG-GN (215) • TNMM-NR (215) • TNMG/TNGG-PP (214) • TNMG-VL (214) • TNMG-PF (213) • TNMG-SF (213) • TNMG-NF (214) • TNMS-12 (271) • TNMA (215) Spare Parts Designation PTGNR/L 2020K-16 TTN 322 TTN 332* SP 3 LR 3 SR 117-2014 HW 2.5/5 PN 3-4 PTGNR/L 2525M-16 TTN 322 TTN 332* SP 3 LR 3 SR 117-2014 HW 2.5/5 PN 3-4 PTGNR/L 2525M-22 TTN 422 SP 4 LR 4 SR 117-2010 HW 3.0 PN 3-4 PTGNR 3232P-22 TTN 422 SP 4 LR 4 SR 117-2010 HW 3.0 PN 3-4 * Optional, to be ordered separately 45
