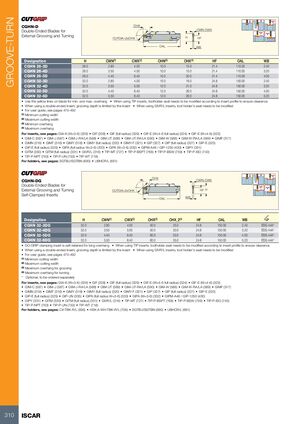

GROOVE-TURN CGHN-D OHX Double-Ended Blades for CWN-CWX External Grooving and Turning H CUTDIA=2xOHX HF OAL WB Designation H CWN(1) CWX(2) OHN(3) OHX(4) HF OAL WB CGHN 26-3D 26.0 2.80 4.00 10.0 15.0 21.4 110.00 2.40 CGHN 26-4D 26.0 3.50 4.50 10.0 15.0 21.4 110.00 3.20 CGHN 26-5D 26.0 4.40 6.40 10.0 20.0 21.4 110.00 4.00 CGHN 32-3D 32.0 2.80 4.00 10.0 19.0 24.8 150.00 2.40 CGHN 32-4D 32.0 3.50 5.00 12.0 21.0 24.8 150.00 3.20 CGHN 32-5D 32.0 4.40 6.40 12.0 26.0 24.8 150.00 4.00 CGHN 32-6D 32.0 5.50 6.40 12.0 26.0 24.8 150.00 5.20 • Use the yellow lines on blade for min. and max. overhang • When using TIP inserts, toolholder seat needs to be modified according to insert profile to ensure clearance • When using a double-ended insert, grooving depth is limited by the insert • When using GIVR/L inserts, tool holder’s seat needs to be modified • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Minimum overhang (4) Maximum overhang For inserts, see pages: GIA-K (W=3-6) (329) • GIF (328) • GIF (full radius) (329) • GIF-E (W=4-6 full radius) (324) • GIF-E (W=4-6) (322) • GIM-C (587) • GIM-J (587) • GIM-J-RA/LA (588) • GIM-UT (589) • GIM-UT-RA/LA (590) • GIM-W (588) • GIM-W-RA/LA (589) • GIMF (317) • GIMN (319) • GIMT (316) • GIMY (318) • GIMY (full radius) (320) • GIMY-F (321) • GIP (327) • GIP (full radius) (327) • GIP-E (323) • GIP-E (full radius) (325) • GIPA (full radius W=3-6) (333) • GIPA (W=3-6) (332) • GIPM-A46 / GIP-1250 (430) • GIPY (331) • GITM (330) • GITM (full radius) (331) • GIVR/L (316) • TIP-MT (727) • TIP-P-BSPT (768) • TIP-P-BSW (759) • TIP-P-ISO (743) • TIP-P-NPT (763) • TIP-P-UN (753) • TIP-WT (718) For holders, see pages: SGTBU/SGTBN (690) • UBHCR/L (691) OHX CGHN-DG CWN-CWX Double-Ended Blades for External Grooving and Turning CUTDIA=2xOHX HF H Self-Clamped Inserts OAL WB Designation H CWN(1) CWX(2) OHX(3) OHX_2(4) HF OAL WB CGHN 32-3DG 32.0 2.80 4.00 50.0 25.0 24.8 150.00 2.40 EDG 44A* CGHN 32-4DG 32.0 3.50 5.00 50.0 30.0 24.8 150.00 3.20 EDG 44A* CGHN 32-5DG 32.0 4.40 6.40 60.0 33.0 24.8 150.00 4.00 EDG 44A* CGHN 32-6DG 32.0 5.50 6.40 60.0 35.0 24.8 150.00 5.20 EDG 44A* • DO-GRIP clamping insert is self-retained for long overhang • When using TIP inserts, toolholder seat needs to be modified according to insert profile to ensure clearance • When using a double-ended insert, grooving depth is limited by the insert • When using GIVR/L inserts, tool holder’s seat needs to be modified • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum overhang for grooving (4) Maximum overhang for turning * Optional, to be ordered separately For inserts, see pages: GIA-K (W=3-6) (329) • GIF (328) • GIF (full radius) (329) • GIF-E (W=4-6 full radius) (324) • GIF-E (W=4-6) (322) • GIM-C (587) • GIM-J (587) • GIM-J-RA/LA (588) • GIM-UT (589) • GIM-UT-RA/LA (590) • GIM-W (588) • GIM-W-RA/LA (589) • GIMF (317) • GIMN (319) • GIMT (316) • GIMY (318) • GIMY (full radius) (320) • GIMY-F (321) • GIP (327) • GIP (full radius) (327) • GIP-E (323) • GIP-E (full radius) (325) • GIP-UN (335) • GIPA (full radius W=3-6) (333) • GIPA (W=3-6) (332) • GIPM-A46 / GIP-1250 (430) • GIPY (331) • GITM (330) • GITM (full radius) (331) • GIVR/L (316) • TIP-MT (727) • TIP-P-BSPT (768) • TIP-P-BSW (759) • TIP-P-ISO (743) • TIP-P-NPT (763) • TIP-P-UN (753) • TIP-WT (718) For holders, see pages: C#-TBK-R/L (695) • HSK A-WH-TBK-R/L (706) • SGTBU/SGTBN (690) • UBHCR/L (691) 310 ISCAR
