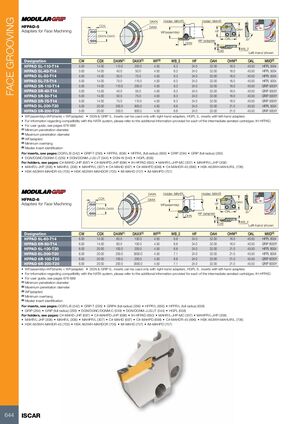

Токарные инструменты Iscar (часть 1) 2026 - страница 646

FACE GROOVING DAXN Holder: MAHPL Holder: MAHR HFPAD-5 CDX DAXX OAH Adapters for Face Machining WF(assembly) HF DAXN-DAXX OAL D WF (adapter) OHN WB_2 CW Left-hand shown Designation CW CDX DAXN(1) DAXX(2) WF(3) WB_2 HF OAH OHN(4) OAL MIID(5) HFPAD 5L-110-T14 5.00 14.00 110.0 200.0 4.50 6.3 24.0 32.00 16.0 40.50 HFPL 5004 HFPAD 5L-40-T14 5.00 14.00 40.0 50.0 4.50 6.3 24.0 32.00 16.0 40.50 HFPL 5004 HFPAD 5L-50-T14 5.00 14.00 50.0 75.0 4.50 6.3 24.0 32.00 16.0 40.50 HFPL 5004 HFPAD 5L-75-T14 5.00 14.00 75.0 110.0 4.50 6.3 24.0 32.00 16.0 40.50 HFPL 5004 HFPAD 5R-110-T14 5.00 14.00 110.0 200.0 4.50 6.3 24.0 32.00 16.0 40.50 GRIP 5005Y HFPAD 5R-40-T14 5.00 14.00 40.0 50.0 4.50 6.3 24.0 32.00 16.0 40.50 GRIP 5005Y HFPAD 5R-50-T14 5.00 14.00 50.0 75.0 4.50 6.3 24.0 32.00 16.0 40.50 GRIP 5005Y HFPAD 5R-75-T14 5.00 14.00 75.0 110.0 4.50 6.3 24.0 32.00 16.0 40.50 GRIP 5005Y HFPAD 5L-200-T20 5.00 20.00 200.0 800.0 4.50 6.6 24.0 32.00 21.0 45.50 HFPL 5004 HFPAD 5R-200-T20 5.00 20.00 200.0 800.0 4.50 6.6 24.0 32.00 21.0 45.50 GRIP 5005Y • WF(assembly)=WF(shank) + WF(adapter) • DGN & GRIP 5.. inserts can be used only with right-hand adapters, HGPL 5.. inserts with left-hand adapters • For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD. • For user guide, see pages 676-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) WF(adapter) (4) Minimum overhang (5) Master insert identification For inserts, see pages: DGR/L-B (542) • GRIP-T (295) • HFPR/L (656) • HFPR/L (full radius) (656) • GRIP (294) • GRIP (full radius) (295) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGN-W (540) • HGPL (658) For holders, see pages: C#-MAHD-JHP (697) • C#-MAHPD-JHP (698) • IH-HFPAD (650) • MAHR/L-JHP-MC (307) • MAHPR/L-JHP (308) • MAHR/L-JHP (306) • MAHR/L (306) • MAHPR/L (307) • C#-MAHD (697) • C#-MAHPD (698) • C#-MAHDR-45 (696) • HSK A63WH-MAHUR/L (706) • HSK A63WH-MAHDR-45 (705) • HSK A63WH-MAHDOR (705) • IM-MAHD (707) • IM-MAHPD (707) DAXN Holder: MAHPL Holder: MAHR HFPAD-6 CDX DAXX OAH Adapters for Face Machining WF(assembly) HF DAXN-DAXX OAL D WF (adapter) OHN WB_2 CW Left-hand shown Designation CW CDX DAXN(1) DAXX(2) WF(3) WB_2 HF OAH OHN(4) OAL MIID(5) HFPAD 6L-60-T14 6.00 14.00 60.0 100.0 4.50 6.8 24.0 32.00 16.0 40.50 HFPL 6004 HFPAD 6R-60-T14 6.00 14.00 60.0 100.0 4.50 6.8 24.0 32.00 16.0 40.50 GRIP 6030Y HFPAD 6L-100-T20 6.00 20.00 100.0 200.0 4.50 6.8 24.0 32.00 21.0 45.50 HFPL 6004 HFPAD 6L-200-T20 6.00 20.00 200.0 3000.0 4.50 7.1 24.0 32.00 21.0 45.50 HFPL 6004 HFPAD 6R-100-T20 6.00 20.00 100.0 200.0 4.50 6.8 24.0 32.00 21.0 45.50 GRIP 6030Y HFPAD 6R-200-T20 6.00 20.00 200.0 3000.0 4.50 7.1 24.0 32.00 21.0 45.50 GRIP 6030Y • WF(assembly)=WF(shank) + WF(adapter) • DGN & GRIP 6.. inserts can be used only with right-hand adapters, HGPL 6.. inserts with left-hand adapters • For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD. • For user guide, see pages 676-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) WF(adapter) (4) Minimum overhang (5) Master insert identification For inserts, see pages: DGR/L-B (542) • GRIP-T (295) • GRIPA (full radius) (296) • HFPR/L (656) • HFPR/L (full radius) (656) • GRIP (294) • GRIP (full radius) (295) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • HGPL (658) For holders, see pages: C#-MAHD-JHP (697) • C#-MAHPD-JHP (698) • IH-HFPAD (650) • MAHR/L-JHP-MC (307) • MAHPR/L-JHP (308) • MAHR/L-JHP (306) • MAHR/L (306) • MAHPR/L (307) • C#-MAHD (697) • C#-MAHPD (698) • C#-MAHDR-45 (696) • HSK A63WH-MAHUR/L (706) • HSK A63WH-MAHDR-45 (705) • HSK A63WH-MAHDOR (705) • IM-MAHD (707) • IM-MAHPD (707) 644 ISCAR
