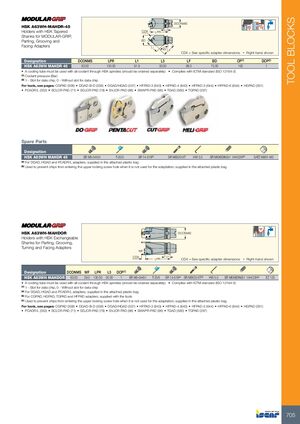

TOOL BLOCKS DCONMS 45º HSK A63WH-MAHDR-45 45° L5 Holders with HSK Tapered CDX LPR Shanks for MODULAR-GRIP, Parting, Grooving and BD Facing Adapters L1 45°LF CDX = See specific adapter dimensions • Right-hand shown Designation DCONMS LPR L1 L5 LF BD CP(1) DCP(2) HSK A63WH MAHDR 45 63.00 130.00 91.9 30.00 89.0 75.00 100 1 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • Complies with ICTM standard (ISO 12164-3) (1) Coolant pressure (Bar) (2) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: CGPAD (308) • DGAD-B-D (538) • DGAD/HGAD (537) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HGPAD (291) • PCADR/L (353) • SCLCR-PAD (71) • SDJCR-PAD (78) • SVJCR-PAD (88) • SWAPR-PAD (96) • TGAD (560) • TGPAD (297) Spare Parts Designation HSK A63WH MAHDR 45 SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT HW 5.0 SR M6X6DIN551 14H/22H(b) SATZ-M8X1-M3 (a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag HSK A63WH-MAHDOR DCONMS Holders with HSK Exchangeable Shanks for Parting, Grooving, Turning and Facing Adapters WF CDX L5 LPR CDX = See specific adapter dimensions • Right-hand shown Designation DCONMS WF LPR L5 DCP(1) HSK A63WH MAHDOR 63.00 29.0 130.00 30.00 1 SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • Complies with ICTM standard (ISO 12164-3) (1) 1 - Slot for data chip, 0 - Without slot for data chip (a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag For tools, see pages: CGPAD (308) • DGAD-B-D (538) • DGAD/HGAD (537) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HGPAD (291) • PCADR/L (353) • SCLCR-PAD (71) • SDJCR-PAD (78) • SVJCR-PAD (88) • SWAPR-PAD (96) • TGAD (560) • TGPAD (297) 705
