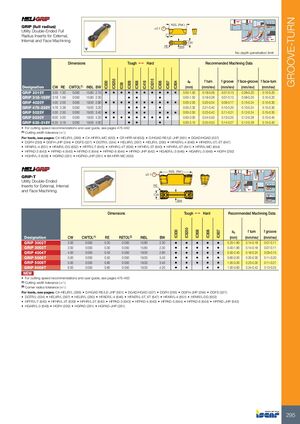

GROOVE-TURN INSL (Ref.) GRIP (full radius) ±0.1 Utility Double-Ended Full Radius Inserts for External, 7° Internal and Face Machining CW RE BW No depth penetration limit Dimensions Tough 1 Hard Recommended Machining Data ap f turn f groove f face-groove f face-turn IC8250 IC5010 IC830 IC808 IC908 IC418 IC806 IC807 IC804 IC08 Designation CW RE CWTOL(1) INSL BW (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) GRIP 3015Y 3.00 1.50 0.050 15.80 2.10 • • • • • • • • • • 0.00-1.50 0.18-0.26 0.07-0.13 0.08-0.20 0.10-0.20 GRIP 318-159Y 3.18 1.59 0.050 15.80 2.30 • • • 0.00-1.50 0.19-0.28 0.07-0.13 0.08-0.20 0.10-0.20 GRIP 4020Y 4.00 2.00 0.050 19.00 2.80 • • • • • • • • • • 0.00-2.00 0.20-0.34 0.09-0.17 0.10-0.24 0.15-0.30 GRIP 476-238Y 4.76 2.38 0.050 19.00 3.20 • • • • 0.00-2.30 0.21-0.40 0.10-0.20 0.10-0.24 0.15-0.30 GRIP 5025Y 5.00 2.50 0.050 19.00 3.40 • • • • • • • • 0.00-2.50 0.23-0.42 0.11-0.21 0.12-0.24 0.15-0.35 GRIP 6030Y 6.00 3.00 0.050 19.00 4.20 • • • • • • • • • 0.00-3.00 0.24-0.50 0.13-0.25 0.12-0.28 0.15-0.40 GRIP 635-318Y 6.35 3.18 0.050 19.00 4.00 • • • 0.00-3.10 0.25-0.53 0.14-0.27 0.12-0.28 0.15-0.40 • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) For tools, see pages: C#-HELIR/L (289) • C#-HFIR/L-MC (653) • CR HFIR-M (655) • D/HGAD RE/LE-JHP (561) • DGAD/HGAD (537) • DGFH (293) • DGFH-JHP (294) • DGFS (527) • DGTR/L (534) • HELIIR/L (397) • HELIR/L (290) • HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HFFR/L-T (645) • HFHR/L-4T (639) • HFHR/L-5T (640) • HFHR/L-6T (641) • HFIR/L-MC (654) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HFPAD-JHP (642) • HGAER/L-3 (646) • HGAIR/L-3 (648) • HGFH (292) • HGHR/L-3 (638) • HGPAD (291) • HGPAD-JHP (291) • IM-HFIR-MC (653) INSL (Ref.) ±0.1 GRIP-T Utility Double-Ended Inserts for External, Internal RE and Face Machining CW BW Dimensions Tough 1 Hard Recommended Machining Data IC8250 ap f turn f groove IC830 IC808 IC806 IC807 Designation CW CWTOL(1) RE RETOL(2) INSL BW (mm) (mm/rev) (mm/rev) GRIP 3002T 3.00 0.050 0.20 0.050 15.80 2.30 • • • • • 0.25-1.80 0.14-0.18 0.07-0.11 GRIP 3003T 3.00 0.050 0.30 0.050 15.80 2.30 • • • • • 0.40-1.80 0.14-0.18 0.07-0.11 GRIP 4004T 4.00 0.050 0.40 0.050 19.00 2.80 • • • • • 0.50-2.40 0.18-0.24 0.09-0.15 GRIP 5005T 5.00 0.050 0.50 0.050 19.00 3.40 • • • • • 0.60-3.00 0.20-0.30 0.11-0.20 GRIP 5008T 5.00 0.050 0.80 0.050 19.00 3.40 • • • • • 1.00-3.00 0.23-0.35 0.11-0.21 GRIP 6008T 6.00 0.050 0.80 0.050 19.00 4.20 • • • • 1.00-3.60 0.24-0.42 0.13-0.25 NEW • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: C#-HELIR/L (289) • D/HGAD RE/LE-JHP (561) • DGAD/HGAD (537) • DGFH (293) • DGFH-JHP (294) • DGFS (527) • DGTR/L (534) • HELIIR/L (397) • HELIR/L (290) • HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HFFR/L-T (645) • HFHR/L-4T (639) • HFHR/L-5T (640) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HFPAD-JHP (642) • HGAIR/L-3 (648) • HGFH (292) • HGPAD (291) • HGPAD-JHP (291) 295
