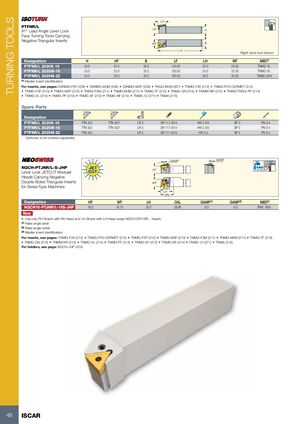

TURNING TOOLS LH 91º PTFNR/L HF H 91° Lead Angle Lever Lock Face Turning Tools Carrying Negative Triangular Inserts B WF LF Right hand tool shown Designation H HF B LF LH WF MIID(1) PTFNR/L 2020K-16 20.0 20.0 20.0 125.00 20.0 25.00 TNMG 16.. PTFNR/L 2525M-16 25.0 25.0 25.0 150.00 20.0 32.00 TNMG 16.. PTFNR/L 2525M-22 25.0 25.0 25.0 150.00 26.0 32.00 TNMG 2204 (1) Master insert identification For inserts, see pages: D6NMG-F3P (209) • D6NMG-M3M (209) • D6NMG-M3P (209) • TNGG-M3N (267) • TNMG-F3S (212) • TNMG-FFG-CERMET (212) • TNMG-F3P (210) • TNMG-M3P (210) • TNMG-F3M (211) • TNMG-M3M (211) • TNMG-TF (213) • TNMG-GN (215) • TNMM-NR (215) • TNMG/TNGG-PP (214) • TNMG-VL (214) • TNMG-PF (213) • TNMG-SF (213) • TNMG-NF (214) • TNMS-12 (271) • TNMA (215) Spare Parts Designation PTFNR/L 2020K-16 TTN 322 TTN 332* LR 3 SR 117-2014 HW 2.5/5 SP 3 PN 3-4 PTFNR/L 2525M-16 TTN 322 TTN 332* LR 3 SR 117-2014 HW 2.5/5 SP 3 PN 3-4 PTFNR/L 2525M-22 TTN 422 LR 4 SR 117-2010 HW 3.0 SP 4 PN 3-4 * Optional, to be ordered separately GAMP GAMF 27° MAX NQCH-PTJNR/L-S-JHP HF Bar Max 93° Lever Lock JETCUT Modular Heads Carrying Negative Double-Sided Triangular Inserts WF for Swiss-Type Machines 93º LH OAL Designation HF WF LH OAL GAMP(1) GAMF(2) MIID(3) NQCH16-PTJNR/L-16S-JHP 16.0 16.15 20.0 28.80 6.0 6.0 TNM..1604.. New • Use only RH Shank with RH Head and LH Shank with LH Head exept NQCH12R/16R... heads. (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: TNMG-F3S (212) • TNMG-FFG-CERMET (212) • TNMG-F3P (210) • TNMG-M3P (210) • TNMG-F3M (211) • TNMG-M3M (211) • TNMG-TF (213) • TNMG-GN (215) • TNMM-NR (215) • TNMG-VL (214) • TNMG-PF (213) • TNMG-SF (213) • TNMG-NF (214) • TNMS-12 (271) • TNMA (215) For holders, see page: NQCH-JHP (424) 48 ISCAR
