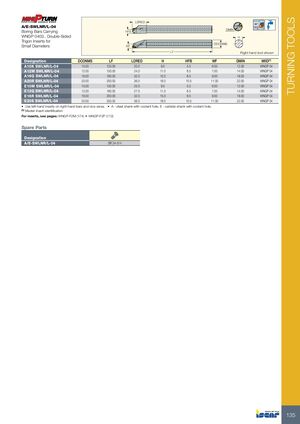

TURNING TOOLS LDRED 95º A/E-SWLNR/L-04 DMIN Boring Bars Carrying HFB WNGP 0403.. Double-Sided H Trigon Inserts for DCONMS Small Diameters WF LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF DMIN MIID(1) A10K SWLNR/L-04 10.00 125.00 20.0 9.0 5.5 6.00 12.00 WNGP 04 A12M SWLNR/L-04 12.00 150.00 24.0 11.0 6.5 7.00 14.00 WNGP 04 A16Q SWLNR/L-04 16.00 180.00 32.0 15.0 8.5 9.00 18.00 WNGP 04 A20R SWLNR/L-04 20.00 200.00 36.0 18.0 10.5 11.00 22.00 WNGP 04 E10M SWLNR/L-04 10.00 150.00 25.0 9.0 5.5 6.00 12.00 WNGP 04 E12Q SWLNR/L-04 12.00 180.00 27.0 11.0 6.5 7.00 14.00 WNGP 04 E16R SWLNR/L-04 16.00 200.00 32.0 15.0 8.5 9.00 18.00 WNGP 04 E20S SWLNR/L-04 20.00 250.00 36.0 18.0 10.5 11.00 22.00 WNGP 04 • Use left-hand inserts on right-hand bars and vice versa. • A - steel shank with coolant hole, E - carbide shank with coolant hole. (1) Master insert identification For inserts, see pages: WNGP-F2M (174) • WNGP-F2P (172) Spare Parts Designation A/E-SWLNR/L-04 SR 34-514 135
