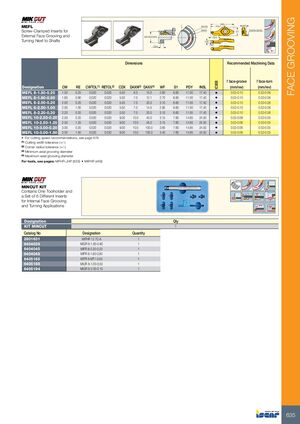

FACE GROOVING INSL MEFL DAXN PDY WF Screw-Clamped Inserts for DAXX S1 DAXN-DAXX External Face Grooving and DAXN-DAXX CDX Turning Next to Shafts CW RE CDX Dimensions Recommended Machining Data f face-groove f face-turn IC908 Designation CW RE CWTOL(1) RETOL(2) CDX DAXN(3) DAXX(4) WF S1 PDY INSL (mm/rev) (mm/rev) MEFL 8-1.50-0.20 1.50 0.20 0.020 0.020 5.50 8.0 15.0 2.60 6.60 11.00 17.40 • 0.02-0.10 0.02-0.06 MEFL 8-1.60-0.80 1.60 0.80 0.020 0.020 5.50 7.0 12.1 2.70 6.60 11.00 17.40 • 0.02-0.10 0.02-0.06 MEFL 8-2.00-0.20 2.00 0.20 0.020 0.020 5.50 7.0 20.0 3.10 6.60 11.00 17.40 • 0.02-0.10 0.02-0.06 MEFL 8-2.00-1.00 2.00 1.00 0.020 0.020 5.50 7.0 14.0 2.90 6.60 11.00 17.40 • 0.02-0.10 0.02-0.06 MEFL 8-2.20-0.20 2.20 0.20 0.020 0.020 5.50 7.0 20.0 3.10 6.60 11.00 17.40 • 0.02-0.10 0.02-0.06 MEFL 10-2.50-0.20 2.50 0.20 0.020 0.020 9.00 10.0 45.0 3.15 7.60 14.85 24.50 • 0.02-0.06 0.02-0.05 MEFL 10-2.50-1.25 2.50 1.25 0.020 0.020 9.00 10.0 45.0 3.15 7.60 14.85 24.50 • 0.02-0.06 0.02-0.05 MEFL 10-3.00-0.20 3.00 0.20 0.020 0.020 9.00 10.0 100.0 3.60 7.60 14.85 24.50 • 0.02-0.06 0.02-0.05 MEFL 10-3.00-1.50 3.00 1.50 0.020 0.020 9.00 10.0 100.0 3.40 7.60 14.85 24.50 • 0.02-0.06 0.02-0.05 • For cutting speed recommendations, see page 678 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum axial grooving diameter (4) Maximum axial grooving diameter For tools, see pages: MFHR-JHP (633) • MIFHR (468) KITS MINCUT KIT Contains One Toolholder and a Set of 6 Different Inserts for Internal Face Grooving and Turning Applications Designation Qty KIT MINCUT 7 Catalog No Designation Quantity 2801631 MIFHR 12�7C-8 1 6404029 MIGR 8-1�60-0�80 1 6404045 MIFR 8-2�20-0�20 1 6404049 MIFR 8-1�60-0�80 1 6405165 MITR 8-MT1-0�05 1 6405188 MIUR 8-1�00-0�50 1 6405194 MIGR 8-2�00-0�10 1 635
