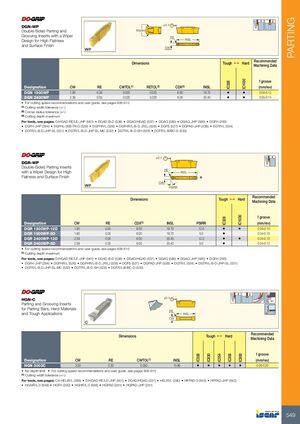

PARTING ±0.1 DGN-WP Double-Sided Parting and Wipers Grooving Inserts with a Wiper RE Design for High Flatness INSL and Surface Finish CW Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC328 Designation CW RE CWTOL(1) RETOL(2) CDX(3) INSL (mm/rev) DGN 1900WP 1.90 0.05 0.020 0.020 6.00 19.70 • • 0.04-0.12 DGN 2400WP 2.39 0.05 0.020 0.020 6.00 20.40 • • 0.05-0.14 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: D/HGAD RE/LE-JHP (561) • DGAD-B-D (538) • DGAD/HGAD (537) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHL-26B-TR-D (528) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFS (527) • DGPAD-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B/BC-D (533) ±0.1 DGR-WP Double-Sided Parting Inserts RE with a Wiper Design for High INSL Flatness and Surface Finish R CW PSIRR Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 Designation CW RE CDX(1) INSL PSIRR IC328 (mm/rev) DGR 1900WP-12D 1.90 0.05 6.00 19.70 12.0 • • 0.04-0.10 DGR 1900WP-5D 1.90 0.05 6.00 19.70 5.0 • 0.04-0.10 DGR 2400WP-12D 2.39 0.05 6.00 20.40 12.0 • • 0.04-0.10 DGR 2400WP-5D 2.39 0.05 6.00 20.40 5.0 • 0.04-0.12 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting depth maximum For tools, see pages: D/HGAD RE/LE-JHP (561) • DGAD-B-D (538) • DGAD/HGAD (537) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFS (527) • DGPAD-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B/BC-D (533) ±0.1 HGN-C Parting and Grooving Inserts for Parting Bars, Hard Materials RE and Tough Applications INSL CW Recommended Dimensions Tough 1 Hard Machining Data f groove IC328 IC830 IC354 IC308 IC908 Designation CW RE CWTOL(1) INSL (mm/rev) HGN 3003C 3.00 0.30 0.050 15.80 • • • • • 0.08-0.20 • No depth limit • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) For tools, see pages: C#-HELIR/L (289) • D/HGAD RE/LE-JHP (561) • DGAD/HGAD (537) • HELIR/L (290) • HFPAD-3 (643) • HFPAD-JHP (642) • HGAIR/L-3 (648) • HGFH (292) • HGHR/L-3 (638) • HGPAD (291) • HGPAD-JHP (291) 549
