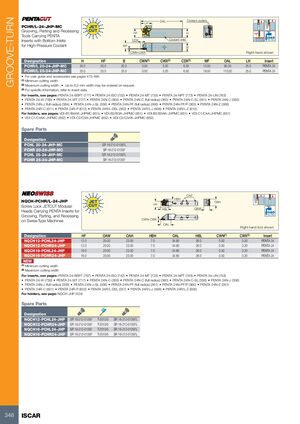

GROOVE-TURN OAL Coolant outlets LH PCHR/L-24-JHP-MC Grooving, Parting and Recessing HF H Tools Carrying PENTA Lock Inserts with Bottom Inlets CDX Coolant inlet Bar Max for High-Pressure Coolant WF B CWN-CWX Right-hand shown Designation H HF B CWN(1) CWX(2) CDX(3) WF OAL LH Insert PCHR/L 20-24-JHP-MC 20.0 20.0 20.0 0.50 3.20 6.50 13.50 95.00 25.0 PENTA 24 PCHR/L 25-24-JHP-MC 25.0 25.0 25.0 0.50 3.20 6.50 18.50 110.00 25.0 PENTA 24 • For user guide and accessories see pages 475-496 (1) Minimum cutting width (2) Maximum cutting width • Up to 6.2 mm width may be ordered on request. (3) For specific information, refer to insert data. For inserts, see pages: PENTA 24-BSPT (777) • PENTA 24-ISO (752) • PENTA 24-MT (735) • PENTA 24-NPT (773) • PENTA 24-UN (763) • PENTA 24-W (769) • PENTA 24-WT (727) • PENTA 24N-C (364) • PENTA 24N-C (full radius) (365) • PENTA 24N-C-SL (361) • PENTA 24N-J (363) • PENTA 24N-J (full radius) (364) • PENTA 24N-J-SL (356) • PENTA 24N-PF (full radius) (366) • PENTA 24N-PF/P (365) • PENTA 24N-Z (366) • PENTA 24R-C (611) • PENTA 24R-P (612) • PENTA 24R/L-DSL (362) • PENTA 24R/L-J (608) • PENTA 24R/L-Z (610) For holders, see pages: VDI-B1/B4AK-JHPMC (851) • VDI-B2/B3A-JHPMC (851) • VDI-B2/B3AK-JHPMC (851) • VDI-C1/C4A-JHPMC (851) • VDI-C1/C4AK-JHPMC (852) • VDI-C2/C3A-JHPMC (852) • VDI-C2/C3AK-JHPMC (852) Spare Parts Designation PCHL 20-24-JHP-MC SR 16-212-01397L PCHR 20-24-JHP-MC SR 16-212-01397 PCHL 25-24-JHP-MC SR 16-212-01397L PCHR 25-24-JHP-MC SR 16-212-01397 CNT HBH NQCH-PCHR/L-24-JHP OAH HF Screw Lock JETCUT Modular OAW HBL Heads Carrying PENTA Inserts for Grooving, Parting, and Recessing Bar Max CWN-CWX on Swiss-Type Machines OAL Right hand tool shown Designation HF OAW OAH HBH OAL HBL CWN(1) CWX(2) Insert NQCH12-PCHL24-JHP 12.0 20.00 23.00 7.0 34.80 26.0 0.50 3.20 PENTA 24 NQCH12-PCHR24-JHP 12.0 20.00 23.00 7.0 34.80 26.0 0.50 3.20 PENTA 24 NQCH16-PCHL24-JHP 16.0 20.00 23.00 7.0 34.80 26.0 0.50 3.20 PENTA 24 NQCH16-PCHR24-JHP 16.0 20.00 23.00 7.0 34.80 26.0 0.50 3.20 PENTA 24 NEW (1) Minimum cutting width (2) Maximum cutting width For inserts, see pages: PENTA 24-BSPT (767) • PENTA 24-ISO (742) • PENTA 24-MT (725) • PENTA 24-NPT (763) • PENTA 24-UN (753) • PENTA 24-W (759) • PENTA 24-WT (717) • PENTA 24N-C (359) • PENTA 24N-C (full radius) (360) • PENTA 24N-C-SL (356) • PENTA 24N-J (358) • PENTA 24N-J (full radius) (359) • PENTA 24N-J-SL (356) • PENTA 24N-PF (full radius) (361) • PENTA 24N-PF/P (360) • PENTA 24N-Z (361) • PENTA 24R-C (601) • PENTA 24R-P (602) • PENTA 24R/L-DSL (357) • PENTA 24R/L-J (598) • PENTA 24R/L-Z (600) For holders, see page: NQCH-JHP (424) Spare Parts Designation NQCH12-PCHL24-JHP SR 16-212-01397 T-2010/5 SR 16-212-01397L NQCH12-PCHR24-JHP SR 16-212-01397 T-2010/5 SR 16-212-01397L NQCH16-PCHL24-JHP SR 16-212-01397 T-2010/5 SR 16-212-01397L NQCH16-PCHR24-JHP SR 16-212-01397 T-2010/5 SR 16-212-01397L 348 ISCAR
