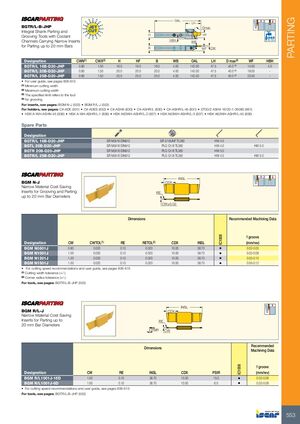

PARTING OAL LH BGTR/L-B-JHP Dmax Integral Shank Parting and H HF Grooving Tools with Coolant Channels Carrying Narrow Inserts HBH WB Bar Max for Parting up to 20 mm Bars B CW WF Designation CWN(1) CWX(2) H HF B WB OAL LH D max(3) WF HBH BGTR/L 16B-D20-JHP 0.80 1.50 16.0 16.0 16.0 4.00 142.00 47.5 40.0 (4) 14.00 4.0 BGTR/L 20B-D20-JHP 0.80 1.50 20.0 20.0 20.0 4.00 142.00 47.5 40.0 (4) 18.00 - BGTR/L 25B-D20-JHP 0.80 1.50 25.0 25.0 25.0 4.00 142.00 47.5 40.0 (4) 23.00 - • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) The specified limit refers to the tool (4) for grooving For inserts, see pages: BGM N-J (553) • BGM R/L-J (553) For holders, see pages: C#-ADE (831) • C#-ADES (832) • C#-ASHA (830) • C#-ASHR/L (830) • C#-ASHR/L-45 (831) • DT30/2 ASH# 16/20-1-35080 (861) • HSK A-WH-ASHN-45 (836) • HSK A-WH-ASHR/L-1 (836) • HSK A63WH-ASHR/L-2 (837) • HSK A63WH-ASHR/L-3 (837) • HSK A63WH-ASHR/L-45 (836) Spare Parts Designation BGTR/L 16B-D20-JHP SR M5X16 DIN912 SR 5/16UNF TL360 HW 4.0 BGTL 20B-D20-JHP SR M5X16 DIN912 PLG G1/8 TL360 HW 4.0 HW 5.0 BGTR 20B-D20-JHP SR M5X16 DIN912 PLG G1/8 TL360 HW 5.0 BGTR/L 25B-D20-JHP SR M5X16 DIN912 PLG G1/8 TL360 HW 4.0 HW 5.0 INSL BGM N-J CDX Narrow Material Cost Saving Inserts for Grooving and Parting RE up to 20 mm Bar Diameters CW±0.02 Dimensions Recommended Machining Data f groove IC1008 Designation CW CWTOL(1) RE RETOL(2) CDX INSL (mm/rev) BGM N0801J 0.80 0.020 0.10 0.020 10.00 38.70 • 0.02-0.05 BGM N1001J 1.00 0.020 0.10 0.020 10.00 38.70 • 0.02-0.08 BGM N1201J 1.20 0.020 0.10 0.020 10.00 38.70 • 0.03-0.10 BGM N1501J 1.50 0.020 0.10 0.020 10.00 38.70 • 0.05-0.12 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: BGTR/L-B-JHP (553) INSL BGM R/L-J CDX Narrow Material Cost Saving Inserts for Parting up to RE 20 mm Bar Diameters PSIR CW Recommended Dimensions Machining Data f groove IC1008 Designation CW RE INSL CDX PSIR (mm/rev) BGM R/L1001J-15D 1.00 0.10 38.70 10.00 15.0 • 0.02-0.06 BGM R/L1001J-6D 1.00 0.10 38.70 10.00 6.0 • 0.02-0.08 • For cutting speed recommendations and user guide, see pages 606-615 For tools, see pages: BGTR/L-B-JHP (553) 553
