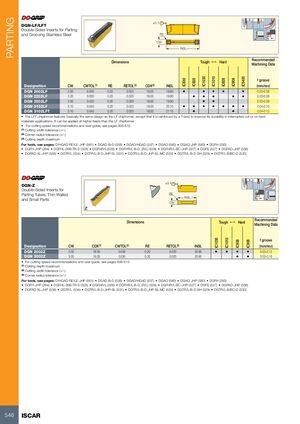

PARTING ±0.1 DGN-LF/LFT Double-Sided Inserts for Parting and Grooving Stainless Steel RE CW INSL Recommended Dimensions Tough 1 Hard Machining Data IC1030 IC1010 IC5400 f groove IC830 IC928 IC808 IC908 Designation CW CWTOL(1) RE RETOL(2) CDX(3) INSL (mm/rev) DGN 2002LF 2.00 0.030 0.20 0.020 18.00 19.80 • • • • • 0.03-0.08 DGN 2202LF 2.20 0.030 0.20 0.020 18.00 19.80 • • • • • 0.03-0.08 DGN 2502LF 2.50 0.030 0.20 0.020 18.00 19.80 • • 0.03-0.08 DGN 3102LF 3.10 0.040 0.20 0.020 18.00 20.10 • • • • • • • 0.04-0.10 DGN 3102LFT 3.10 0.040 0.20 0.020 18.00 21.10 • • 0.04-0.12 • The LFT chipformer features basically the same design as the LF chipformer, except that it is reinforced by a T-land to improve its durability in interrupted-cut or on hard materials applications. It can be applied at higher feeds than the LF chipformer • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: D/HGAD RE/LE-JHP (561) • DGAD-B-D (538) • DGAD/HGAD (537) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHL-26B-TR-D (528) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFHR/L-BC-JHP (527) • DGFS (527) • DGPAD-JHP (538) • DGPAD-XL-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B/BC-D (533) ±0.1 DGN-Z Double-Sided Inserts for Parting Tubes, Thin-Walled RE INSL and Small Parts CW Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1010 IC808 Designation CW CDX(1) CWTOL(2) RE RETOL(3) INSL IC908 (mm/rev) DGN 2002Z 2.00 18.00 0.030 0.20 0.020 20.90 • • • • 0.03-0.12 DGN 3002Z 3.00 18.00 0.030 0.20 0.020 20.90 • • 0.03-0.16 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting depth maximum (2) Cutting width tolerance (+/-) (3) Corner radius tolerance (+/-) For tools, see pages: D/HGAD RE/LE-JHP (561) • DGAD-B-D (538) • DGAD/HGAD (537) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHL-26B-TR-D (528) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFHR/L-BC-JHP (527) • DGFS (527) • DGPAD-JHP (538) • DGPAD-XL-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B/BC-D (533) 546 ISCAR
