Токарные инструменты Iscar (часть 1) 2026 - страница 306

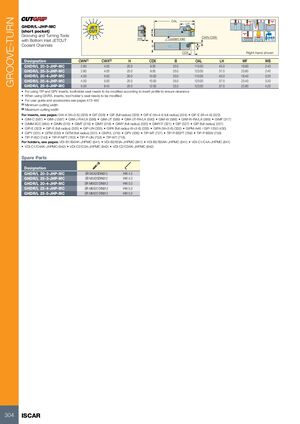

GROOVE-TURN OAL LH GHDR/L-JHP-MC (short pocket) H Grooving and Turning Tools CWN-CWX WB Coolant inlet with Bottom Inlet JETCUT Bar Max Coolant Channels B WF CDX Right-hand shown Designation CWN(1) CWX(2) H CDX B OAL LH WF WB GHDR/L 20-3-JHP-MC 2.80 4.00 20.0 9.00 20.0 110.00 40.0 18.80 2.40 GHDR/L 25-3-JHP-MC 2.80 4.00 25.0 9.00 25.0 123.00 37.0 23.80 2.40 GHDR/L 20-4-JHP-MC 4.00 5.00 20.0 10.00 20.0 110.00 40.0 18.40 3.20 GHDR/L 25-4-JHP-MC 4.00 5.00 25.0 10.00 25.0 123.00 37.0 23.40 3.20 GHDR/L 25-5-JHP-MC 5.00 6.40 25.0 12.00 25.0 123.00 37.0 22.90 4.20 • For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance • When using GIVR/L inserts, tool holder’s seat needs to be modified • For user guide and accessories see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width For inserts, see pages: GIA-K (W=3-6) (329) • GIF (328) • GIF (full radius) (329) • GIF-E (W=4-6 full radius) (324) • GIF-E (W=4-6) (322) • GIM-C (587) • GIM-J (587) • GIM-J-RA/LA (588) • GIM-UT (589) • GIM-UT-RA/LA (590) • GIM-W (588) • GIM-W-RA/LA (589) • GIMF (317) • GIMM 8CC (664) • GIMN (319) • GIMT (316) • GIMY (318) • GIMY (full radius) (320) • GIMY-F (321) • GIP (327) • GIP (full radius) (327) • GIP-E (323) • GIP-E (full radius) (325) • GIP-UN (335) • GIPA (full radius W=3-6) (333) • GIPA (W=3-6) (332) • GIPM-A46 / GIP-1250 (430) • GIPY (331) • GITM (330) • GITM (full radius) (331) • GIVR/L (316) • GPV (336) • TIP-MT (727) • TIP-P-BSPT (768) • TIP-P-BSW (759) • TIP-P-ISO (743) • TIP-P-NPT (763) • TIP-P-UN (753) • TIP-WT (718) For holders, see pages: VDI-B1/B4AK-JHPMC (841) • VDI-B2/B3A-JHPMC (841) • VDI-B2/B3AK-JHPMC (841) • VDI-C1/C4A-JHPMC (841) • VDI-C1/C4AK-JHPMC (842) • VDI-C2/C3A-JHPMC (842) • VDI-C2/C3AK-JHPMC (842) Spare Parts Designation GHDR/L 20-3-JHP-MC SR M5X20DIN912 HW 4.0 GHDR/L 25-3-JHP-MC SR M5X20DIN912 HW 4.0 GHDR/L 20-4-JHP-MC SR M6X20 DIN912 HW 5.0 GHDR/L 25-4-JHP-MC SR M6X20 DIN912 HW 5.0 GHDR/L 25-5-JHP-MC SR M6X20 DIN912 HW 5.0 304 ISCAR
