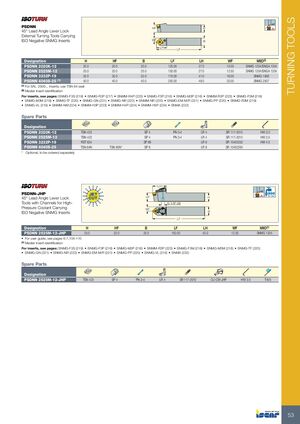

TURNING TOOLS 45° PSDNN HF H 45° Lead Angle Lever Lock External Turning Tools Carrying ISO Negative SNMG Inserts WF B LH LF Designation H HF B LF LH WF MIID(2) PSDNN 2020K-12 20.0 20.0 20.0 125.00 27.0 10.00 SNMG 1204/SNGA 1204 PSDNN 2525M-12 25.0 25.0 25.0 150.00 27.0 12.50 SNMG 1204/SNGA 1204 PSDNN 3232P-19 32.0 32.0 32.0 170.00 41.0 16.00 SNMG 1906 PSDNN 4040S-25 (1) 40.0 40.0 40.0 250.00 49.0 20.00 SNMG 2507 (1) For SN.. 2509... inserts, use TSN 84 seat (2) Master insert identification For inserts, see pages: SNMG-F3S (219) • SNMG-R3P (217) • SNMM-R4P (223) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMM-NR (225) • SNMG-EM-M/R (221) • SNMG-PP (220) • SNMG-R3M (219) • SNMG-VL (219) • SNMM-NM (224) • SNMM-H3P (223) • SNMM-H4P (224) • SNMM-H5P (224) • SNMA (222) Spare Parts Designation PSDNN 2020K-12 TSN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 PSDNN 2525M-12 TSN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 PSDNN 3232P-19 RST 634 SP 66 LR 6 SR 10402352 HW 4.0 PSDNN 4040S-25 TSN 84N TSN 85N* SP 8 LR 8 SR 10402264 * Optional, to be ordered separately LH 45° PSDNN-JHP Bar Max 45° Lead Angle Lever Lock HF H Tools with Channels for High- G 1/8"-28 Pressure Coolant Carrying WF ISO Negative SNMG Inserts B LF Designation H HF B LF LH WF MIID(1) PSDNN 2525M-12-JHP 25.0 25.0 25.0 150.00 40.0 12.50 SNMG 1204 • For user guide, see pages 6-7,104-110 (1) Master insert identification For inserts, see pages: SNMG-F3S (219) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMG-EM-M/R (221) • SNMG-PP (220) • SNMG-VL (219) • SNMA (222) Spare Parts Designation PSDNN 2525M-12-JHP TSN 423 SP 4 PN 3-4 LR 4 SR 117-2010 CU-CW-JHP HW 3.0 T-8/5 53
